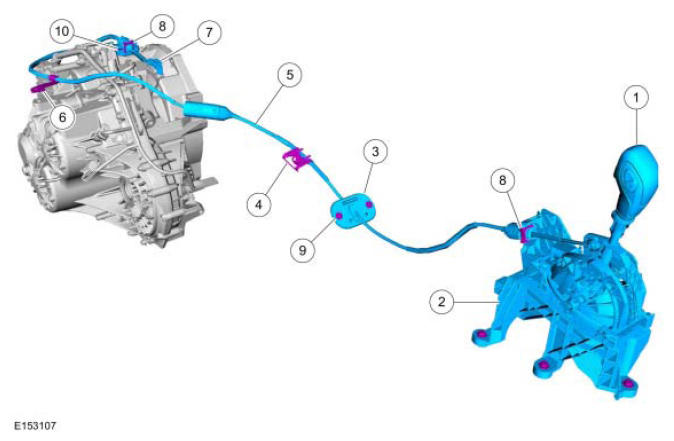

Component Location
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7213 | Selector lever knob |
| 2 | 7210 | Selector lever assembly |
| 3 | - | Selector lever cable grommet (part of 7E395) |
| 4 | - | Selector lever cable retaining clip (part of 7E395) |
| 5 | 7E395 | Selector lever cable |
| 6 | 7B299 | Selector lever cable bracket |
| 7 | - | Adjuster locking tab (part of 7E395) |
| 8 | 7H181 | Selector lever cable retaining clip |
| 9 | W702751 | Selector lever cable grommet nuts |
| 10 | W714072 | Selector lever cable bracket to transmission bolts |
