Transmission Range (TR) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

WARNING: Make sure that the mating faces are clean and free of corrosion and foreign material.

Fig 1: Cleaning Gasket Mating Surfaces
Courtesy of FORD MOTOR CO.
Fig 2: Identifying Transmission Range (TR) Sensor
Courtesy of FORD MOTOR CO.
Torque : 10 Nm

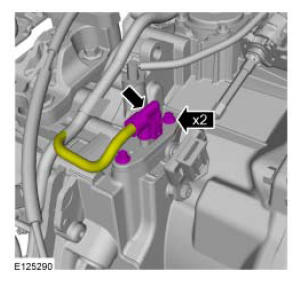

Fig 3: Locating Transmission Range (TR) Sensor Connector And Bolts
Courtesy of FORD MOTOR CO.

NOTE: New units must be configured using the Programmable Module Installation Routine in the diagnostic tool.
