Transmission Control Module (TCM): Removal

WARNING: This page is about a different variant/trim than selected.

Refer to: HEALTH AND SAFETY PRECAUTIONS .
Download the module information to the diagnostic tool using the Programmable Modules Installation routine.
Refer to: AIR CLEANER .

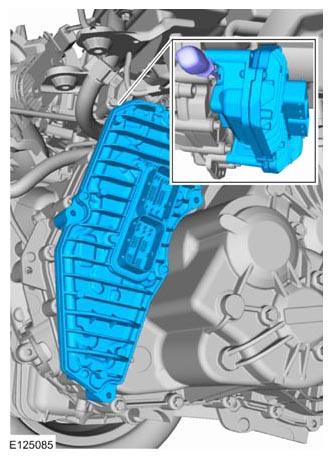

Fig 1: Locating Transmission Control Module Connector
Courtesy of FORD MOTOR CO.
Refer to: JACKING AND LIFTING - OVERVIEW .
1. If equipped.
Fig 2: Locating Engine Lower Cover And Strip Mounting Bolts
Courtesy of FORD MOTOR CO.

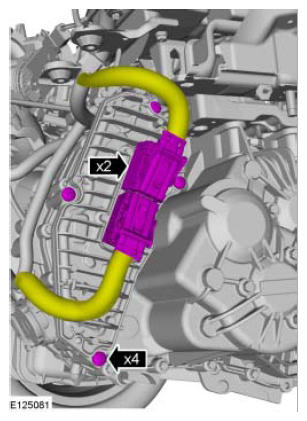

Fig 3: Locating Transmission Control Module Bracket Connectors
Courtesy of FORD MOTOR CO.
NOTE: Make sure that the terminals or pins/sockets of the transmission control module (TCM) and the TCM electrical connector are not bent or damaged.

Fig 4: Locating TCM Electrical Connectors
Courtesy of FORD MOTOR CO.
Fig 5: Identifying Transmission Control Module Cover Bolt
Courtesy of FORD MOTOR CO.
Fig 6: Removing Seal Rings
Courtesy of FORD MOTOR CO.
WARNING: Make sure that the mating faces are clean and free of corrosion and foreign material.

Fig 7: Inspecting Seal Rings
Courtesy of FORD MOTOR CO.
