Transmission Control Module (TCM): Installation

WARNING: This page is about a different variant/trim than selected.

WARNING: Make sure that the mating faces are clean and free of corrosion and foreign material.

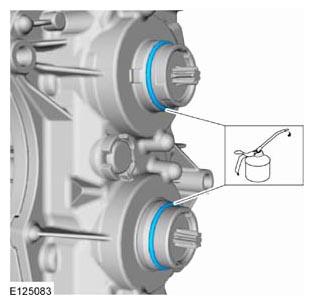

Fig 1: Lubricating Seal Rings

Courtesy of FORD MOTOR CO.

Material : Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

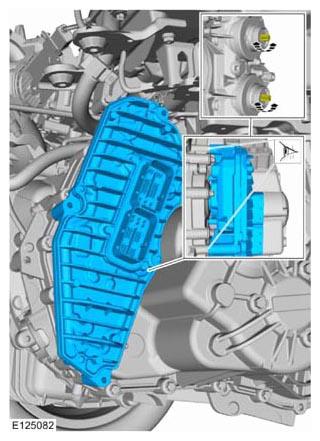

Fig 2: Inspecting Transmission Control Module Cover
Courtesy of FORD MOTOR CO.

NOTE: Make sure that the terminals or pins/sockets of the transmission control module (TCM) and the TCM electrical connector are not bent or damaged.

Fig 3: Locating TCM Electrical Connectors

Courtesy of FORD MOTOR CO.

Torque : 27 Nm
Fig 4: Locating Transmission Control Module Bracket Connectors
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Fig 5: Locating Transmission Control Module Connector
Courtesy of FORD MOTOR CO.
Refer to: AIR CLEANER .
NOTE: New units must be configured using the Programmable Module Installation Routine in the diagnostic tool.
Upload the module information from the diagnostic tool to the module using the Programmable Modules Installation routine.
General Equipment : Ford Diagnostic Equipment
