Selector Shaft Seal: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Make sure that the component is clean and free of foreign material.

Fig 1: Installing Shift Lever Seal Using Special Tools

Courtesy of FORD MOTOR CO.

Special Tool(s) : 307-670 (Remover/Installer, Shift Lever Seal)
Torque : 15 Nm
1. Torque : 26 Nm
Fig 2: Identifying Shift Lever Seal Bolt
Courtesy of FORD MOTOR CO.
1. NOTE: Make sure that a new component is installed.

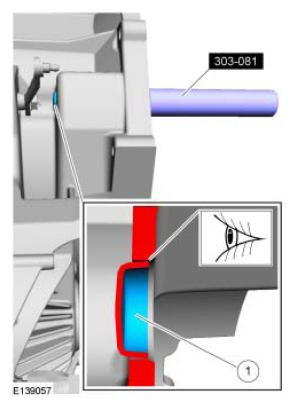

Fig 3: Inspecting Shift Lever Seal
Courtesy of FORD MOTOR CO.
Refer to: Transmission - 2.0L Duratec-HE .
