Output Shaft Speed (OSS) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: HEALTH AND SAFETY PRECAUTIONS .
Refer to: JACKING AND LIFTING - OVERVIEW .
1. If equipped.

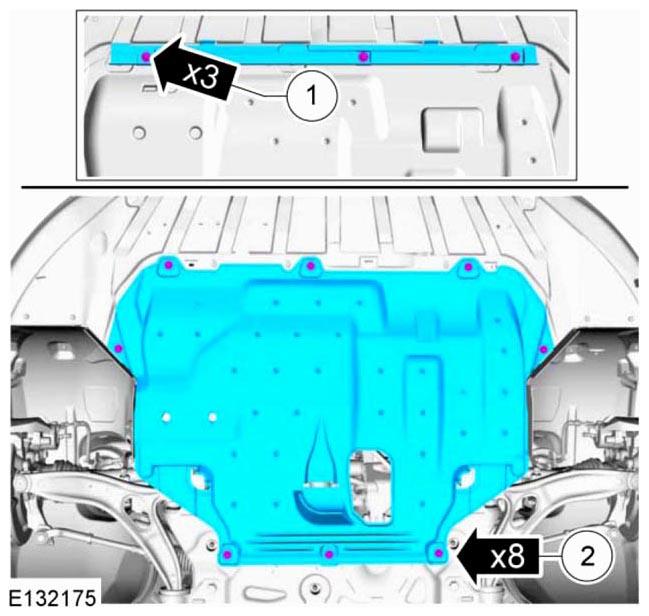

Fig 1: Locating Engine Lower Cover And Strip Mounting Bolts
Courtesy of FORD MOTOR CO.
NOTE: Take extra care not to damage the wiring harnesses.

Fig 2: Removing Wiring Harnesses Cover
Courtesy of FORD MOTOR CO.
Torque : 10 Nm

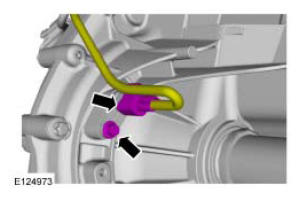

Fig 3: Locating Output Shaft Speed (OSS) Sensor Harness Connector And Bolt
Courtesy of FORD MOTOR CO.
WARNING: Be prepared to collect escaping fluid.

Fig 4: Identifying Output Shaft Speed (OSS) Sensor
Courtesy of FORD MOTOR CO.
Fig 5: Removing Output Shaft Speed (OSS) Sensor Seal Ring
Courtesy of FORD MOTOR CO.
WARNING: Make sure that the mating faces are clean and free of corrosion and foreign material.

Fig 6: Cleaning Output Shaft Speed (OSS) Sensor Mating Surfaces
Courtesy of FORD MOTOR CO.
