Input Shaft Speed (ISS) Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

Refer to: HEALTH AND SAFETY PRECAUTIONS .
Refer to: AIR CLEANER .
Refer to: BATTERY .

Refer to: BATTERY TRAY .
Fig 1: Locating Input Shaft Speed (ISS) Sensor Connector And Bolt
Courtesy of FORD MOTOR CO.
WARNING: Be prepared to collect escaping fluid.

Fig 2: Identifying Input Shaft Speed (ISS) Sensor Connector
Courtesy of FORD MOTOR CO.

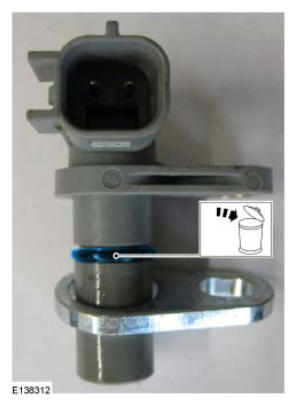

Fig 3: Removing Input Shaft Speed (ISS) Sensor Seal Ring
Courtesy of FORD MOTOR CO.
WARNING: Make sure that the mating faces are clean and free of corrosion and foreign material.

Fig 4: Inspecting Input Shaft Speed (ISS) Sensor Connector
Courtesy of FORD MOTOR CO.
Fig 5: Locating Input Shaft Speed (ISS) Sensor Bolt
Courtesy of FORD MOTOR CO.
WARNING: Be prepared to collect escaping fluid.

Fig 6: Identifying Input Shaft Speed (ISS) Sensor
Courtesy of FORD MOTOR CO.

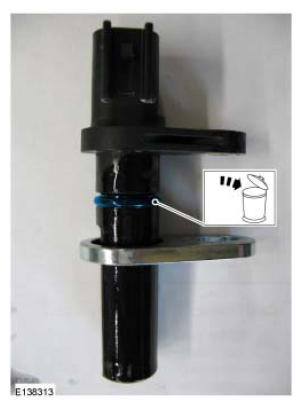

Fig 7: Removing Input Shaft Speed (ISS) Sensor Seal Ring
Courtesy of FORD MOTOR CO.
WARNING: Make sure that the mating faces are clean and free of corrosion and foreign material.

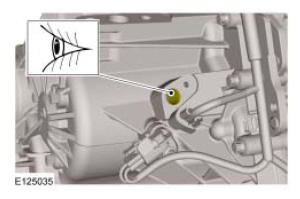

Fig 8: Inspecting Input Shaft Speed (ISS) Sensor
Courtesy of FORD MOTOR CO.
