Input Shaft Speed (ISS) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

1. Material : Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

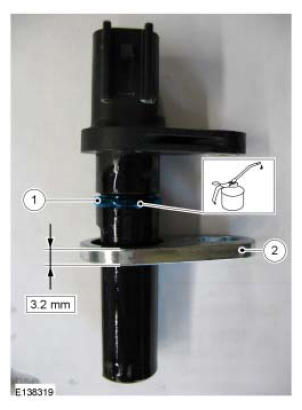

Fig 1: Lubricating Input Shaft Speed (ISS) Sensor Seal Ring
Courtesy of FORD MOTOR CO.

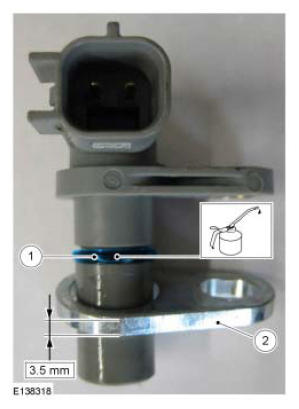

Fig 2: Identifying Input Shaft Speed (ISS) Sensor Connector
Courtesy of FORD MOTOR CO.
Torque : 10 Nm

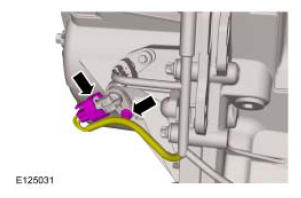

Fig 3: Locating Input Shaft Speed (ISS) Sensor Connector And Bolt
Courtesy of FORD MOTOR CO.
1. Material : Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)
Fig 4: Lubricating Input Shaft Speed (ISS) Sensor Seal Ring
Courtesy of FORD MOTOR CO.
Fig 5: Identifying Input Shaft Speed (ISS) Sensor
Courtesy of FORD MOTOR CO.
Torque : 10 Nm

Fig 6: Locating Input Shaft Speed (ISS) Sensor Bolt
Courtesy of FORD MOTOR CO.
Refer to: BATTERY TRAY .
Refer to: BATTERY .

Refer to: AIR CLEANER .
