Halfshaft Seal LH: Installation

WARNING: This page is about a different variant/trim than selected.
  1. WARNING: Make sure that the mating faces are clean and free of corrosion and foreign material.

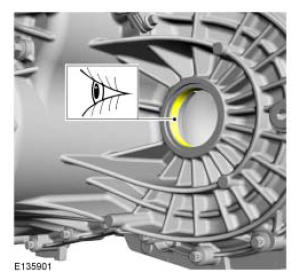

    Fig 1: Inspecting Front Halfshaft Seal LH
    G08064070Courtesy of FORD MOTOR CO.
    2. NOTE: Make sure that a new component is installed.

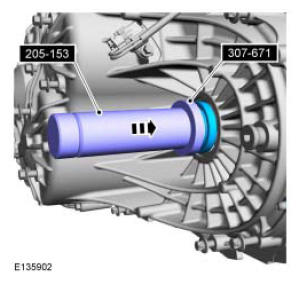

    Fig 2: Installing Front Halfshaft Seal LH Using Special Tools
    G08064071Courtesy of FORD MOTOR CO.
  2. Special Tool(s)  : 307-671 (Installer, Axle Seal)  , 205-153 (Handle)
  3. Refer to: FRONT HALFSHAFT LH .
