Clutch Unit: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Visual check.

    Install the Special Tool(s)  : 307-676 (Tool, Clutch 1 and 2 Reset)

    General Equipment  : Vise

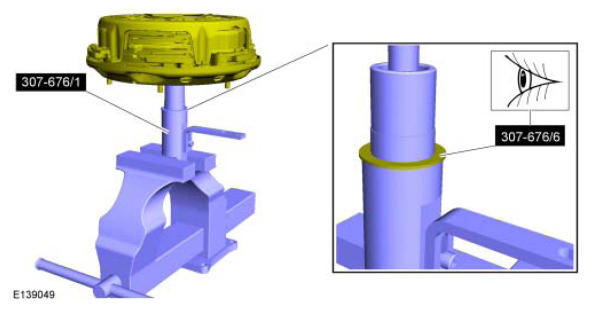

    Fig 1: Inspecting Clutch Unit
    G08064176Courtesy of FORD MOTOR CO.
    2. NOTE: Only tighten the nut and bolt finger tight at this stage.
    Fig 2: Tightening Nut And Bolt
    G08064177Courtesy of FORD MOTOR CO.
  2. Install the Special Tool(s)  : 307-676 (Tool, Clutch 1 and 2 Reset)
    3. NOTE: Only tighten the nut finger tight at this stage.
    Fig 3: Tightening Clutch Plate
    G08064178Courtesy of FORD MOTOR CO.
  3. Install the Special Tool(s)  : 307-676 (Tool, Clutch 1 and 2 Reset)
  4. Visual check.

    Install the Special Tool(s)  : 307-676 (Tool, Clutch 1 and 2 Reset)

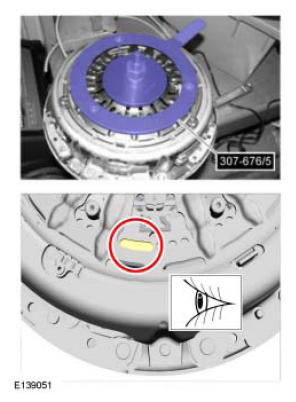

    Fig 4: Inspecting Clutch Plate
    G08064179Courtesy of FORD MOTOR CO.
  5. Fig 5: Installing Cutch Plate In Sequence
    G08064180Courtesy of FORD MOTOR CO.

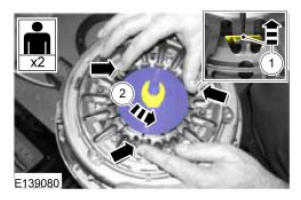

  6. Fig 6: Installing Clutch Plate Using Special Tools
    G08064181Courtesy of FORD MOTOR CO.
  7. Remove the Special Tool(s)  : 307-676 (Tool, Clutch 1 and 2 Reset)
    8. NOTE: Only tighten the nut finger tight at this stage.

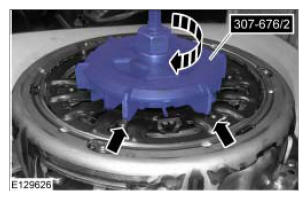

    Fig 7: Turning Clutch Nut Using Special Tools
    G08064182Courtesy of FORD MOTOR CO.
  8. Install the Special Tool(s)  : 307-676 (Tool, Clutch 1 and 2 Reset)
  9. Visual check.

    Install the Special Tool(s)  : 307-676 (Tool, Clutch 1 and 2 Reset)

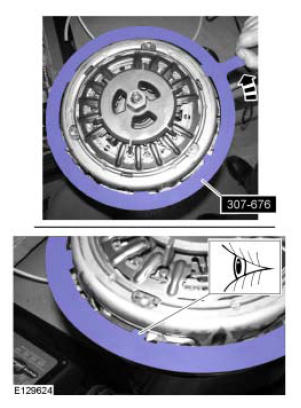

    Fig 8: Checking Clutch Plate
    G08064183Courtesy of FORD MOTOR CO.

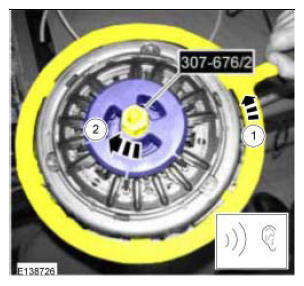

  10. Fig 9: Turning Clutch Plate Bolt Special Tools
    G08064184Courtesy of FORD MOTOR CO.
  11. Remove the Special Tool(s)  : 307-676 (Tool, Clutch 1 and 2 Reset)

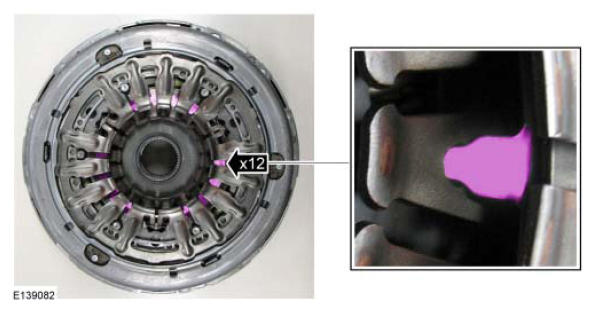

  12. Fig 10: Locating Clutch Plate Rivets
    G08064185Courtesy of FORD MOTOR CO.
  13. If the specified value is under, a new component must be installed.

    General Equipment  : Caliper Gauge

    Fig 11: Identifying Caliper Gauge Installation Dimension
    G08064186Courtesy of FORD MOTOR CO.
  14. If the specified value is under, a new component must be installed.

    General Equipment  : Caliper Gauge

    Fig 12: Identifying Caliper Gauge Installation Dimension
    G08064187Courtesy of FORD MOTOR CO.
  15. NOTE: The component can only be installed in 1 position.

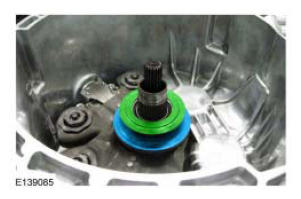

    Fig 13: Identifying Clutch Position
    G08064188Courtesy of FORD MOTOR CO.
  16. Apply a thin coating.

    Material  : Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

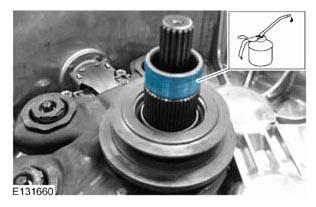

    Fig 14: Applying Thin Coating On Motorcraft® Dual Clutch Transmission
    G07979486Courtesy of FORD MOTOR CO.

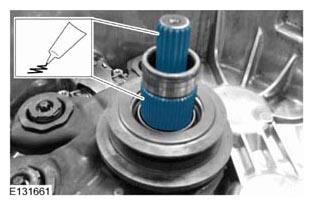

  17. Material  : High Temperature Nickel Anti-Seize Lubricant / XL-2
    Fig 15: Lubricating High Temperature Nickel Anti-Seize
    G07979487Courtesy of FORD MOTOR CO.
  18. General Equipment  : Long Nose Pliers
    Fig 16: Locating Long Nose Pliers
    G08064191Courtesy of FORD MOTOR CO.
  19. Fig 17: Identifying Long Nose Pliers
    G08064192Courtesy of FORD MOTOR CO.
  20. Visual check.

    Install the Special Tool(s)  : 307-675 (Fixture, Clutch Remover/Installer)

    Fig 18: Checking Clutch Plate
    G08064171Courtesy of FORD MOTOR CO.
  21. Install the Special Tool(s)  : 307-675 (Fixture, Clutch Remover/Installer)

    Torque  : 5 Nm

    Fig 19: Identifying Special Tools 307-675 (Fixture, Clutch Remover/Installer)
    G08064194Courtesy of FORD MOTOR CO.
  22. Remove the Special Tool(s)  : 307-675 (Fixture, Clutch Remover/Installer)
  23. NOTE: Make sure that a new component is installed.

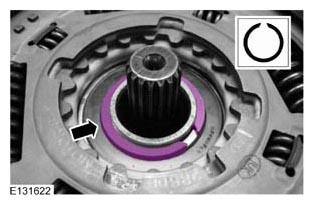

    Fig 20: Identifying Clutch Snap Ring
    G07979493Courtesy of FORD MOTOR CO.
  24. NOTE: Make sure that the installation marks are aligned.

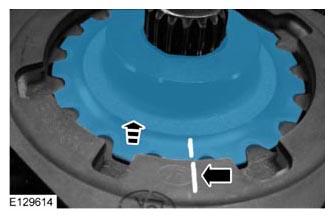

    Fig 21: Locating Alignment Mark Position On Clutch Unit
    G07979465Courtesy of FORD MOTOR CO.
    25. NOTE: Make sure that a new component is installed.
    NOTE: The component can only be installed in 1 position.

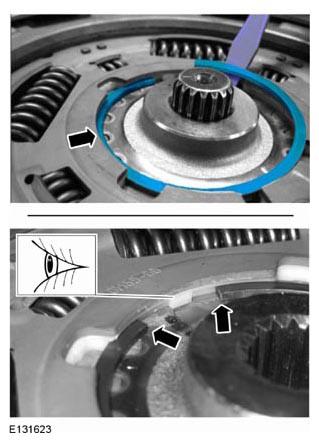

    Fig 22: Removing Clutch Unit Snap Ring
    G07979495Courtesy of FORD MOTOR CO.
  25. Visual check.
  26. Special Tool(s)  : 307-677 (Socket, Actuator Reset)
    Fig 23: Turning Actuator Reset Socket Using Special Tools
    G08064198Courtesy of FORD MOTOR CO.
    1. 2. Material  : High Temperature Nickel Anti-Seize Lubricant / XL-2
    Fig 24: Cleaning Clutch Actuator Motor
    G08064100Courtesy of FORD MOTOR CO.
  28. On both sides.

    Material  : High Temperature Nickel Anti-Seize Lubricant / XL-2

    Fig 25: Locating High Temperature Nickel Anti-Seize Lubricant Area
    G08064200Courtesy of FORD MOTOR CO.
  29. Torque  : 5 Nm
    Fig 26: Locating Clutch Unit Cover Bolts
    G08064166Courtesy of FORD MOTOR CO.
  30. Torque  : 5 Nm

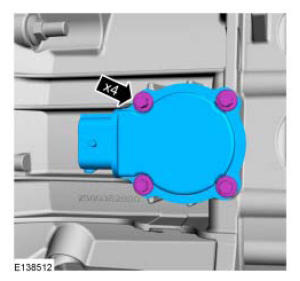

    Fig 27: Locating Clutch Unit Cover Bolts
    G08064167Courtesy of FORD MOTOR CO.
  31. To install, reverse the removal procedure.
  32. Refer to: Transmission - 2.0L Duratec-HE  .
