Clutch Actuator: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Refer to: Clutch Unit  .
  2. NOTE: Note the position of the components before removal.
    Fig 1: Locating Clutch Actuator
    G07979501Courtesy of FORD MOTOR CO.
  3. NOTE: Note the position of the component before removal.

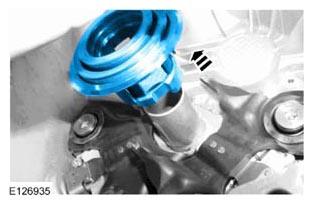

    Fig 2: Removing Clutch Actuator
    G07979502Courtesy of FORD MOTOR CO.
  4. NOTE: Note the position of the components before removal.
    Fig 3: Marking Clutch Actuator Nuts
    G08064079Courtesy of FORD MOTOR CO.
  5. Fig 4: Locating Clutch Actuator Bolts
    G08064080Courtesy of FORD MOTOR CO.
    6. NOTE: Take extra care when handling the component.
    Fig 5: Removing Clutch Actuator Connector
    G07979507Courtesy of FORD MOTOR CO.
  6. On both sides.
