Transmission Fluid Drain and Refill: Filing

WARNING: This page is about a different variant/trim than selected.

NOTE: Do not overfill the transmission. This will cause transmission fluid to be forced out of the case.

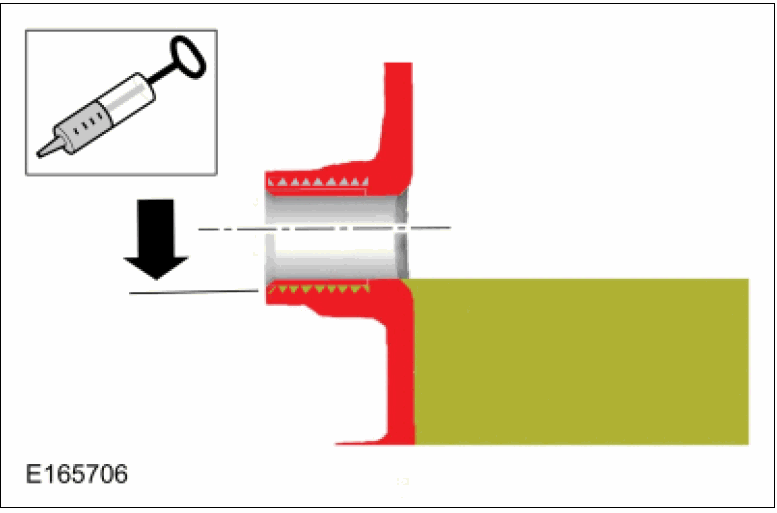

Add transmission fluid until the oil runs out of the fill port in a continuous stream. The transmission is full when the oil flow from the fill port has slowed to a broken stream or dripping. Use the General Equipment: Fluid Suction Gun Material: Motorcraft® Dual Clutch Transmission Fluid / XT-11-QDC (WSS-M2C200-D2)

Courtesy of

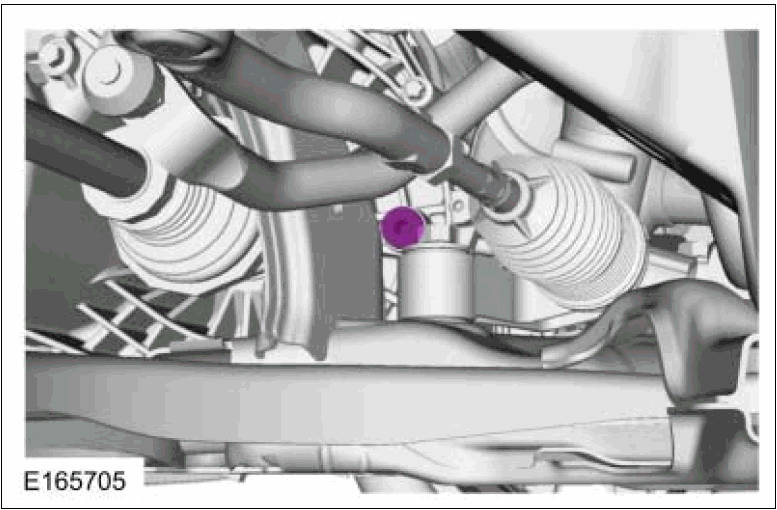

NOTE: The O-ring seal is to be reused unless damaged.

Use the General Equipment: Ball End Hex Bit

Torque: 32 lb.ft (43 Nm)

Courtesy of

Install Engine Undershield.
