Transmission Case: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Refer to: HEALTH AND SAFETY PRECAUTIONS .

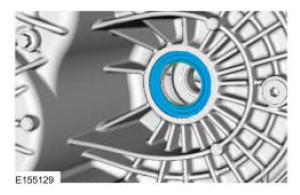

  2. Fig 1: Identifying Axle Seal
    G08064299Courtesy of FORD MOTOR CO.

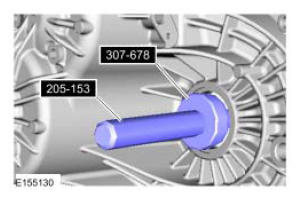

  3. Special Tool(s)  : 205-153 (Handle)  , 307-678 (Remover, Bearing Cone)
    Fig 2: Removing Bearing Cone Using Special Tools
    G08064300Courtesy of FORD MOTOR CO.
