Transmission Case: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Special Tool(s)  : 204-594 (Forcing screw)  , 307-678 (Remover, Bearing Cone)  , 205-140 (Installer, Drive Pinion Bearing Cup)

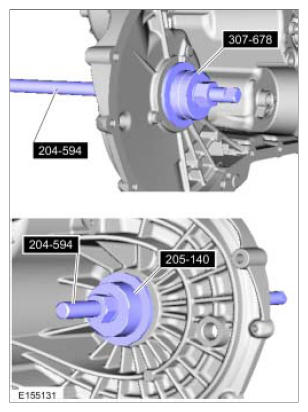

    Fig 1: Installing Drive Pinion Bearing Cup Using Special Tools
    G08064301Courtesy of FORD MOTOR CO.
  2. Special Tool(s)  : 205-153 (Handle)  , 307-671 (Installer, Axle Seal)
    Fig 2: Installing Axle Seal Using Special Tools
    G08064302Courtesy of FORD MOTOR CO.
  3. Special Tool(s)  : 205-153 (Handle)  , 307-671 (Installer, Axle Seal)

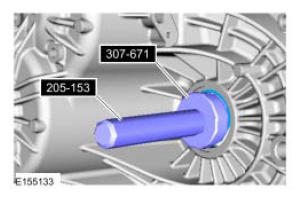

    Fig 3: Installing Axle Seal Using Special Tools
    G08064303Courtesy of FORD MOTOR CO.
