Clutch Housing: Disassembly

WARNING: This page is about a different variant/trim than selected.

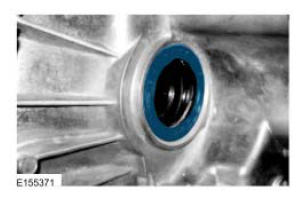

Fig 1: Identifying Clutch Housing O-Ring
Courtesy of FORD MOTOR CO.

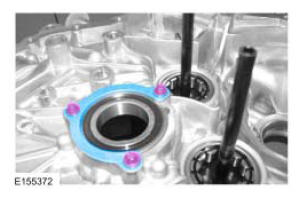

Fig 2: Identifying Clutch Housing Bearing
Courtesy of FORD MOTOR CO.

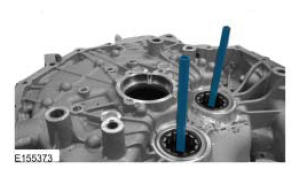

NOTE: The lube feed tubes will need to be broken to remove the bearings.

Fig 3: Removing Clutch Housing Bearing
Courtesy of FORD MOTOR CO.

NOTE: If the clutch housing output shaft bearing is broken, use the next size larger special tool.

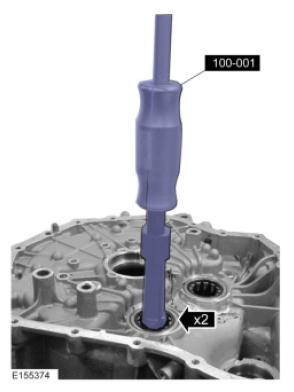

Fig 4: Removing Clutch Housing Output Shaft Bearing Using Special Tools

Courtesy of FORD MOTOR CO.

Special Tool(s) : 100-001 (Slide Hammer)
Special Tool(s) : 205-153 (Handle) , 307-678 (Remover, Bearing Cone)

Fig 5: Removing Clutch Bearing Cone Using Special Tools
Courtesy of FORD MOTOR CO.
