Torque Path
WARNING: This page is about a different variant/trim than selected.
NOTE:

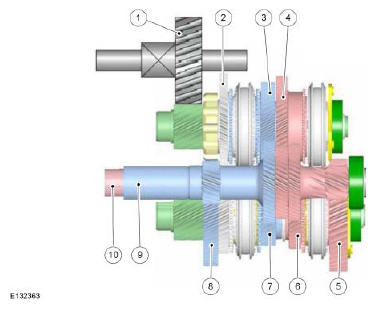

In the descriptions below, the shafts are shown in illustration outside their actual position for greater clarity.
| Item | Description |
|---|---|
| 1 | Differential |
| 2 | Reverse gear wheel |
| 3 | 4th gear wheel |
| 4 | 3rd gear wheel |
| 5 | 1st gear wheel |
| 6 | 5th gear wheel |
| 7 | 6th gear wheel |
| 8 | 2nd gear wheel |
| 9 | Input shaft (hollow shaft) |
| 10 | Input shaft (core shaft) |
NOTE:
When looking at the illustrations, please note that the torque flows once via the input shaft (core shaft) and once via the input shaft (hollow shaft).
