Third gear

WARNING: This page is about a different variant/trim than selected.

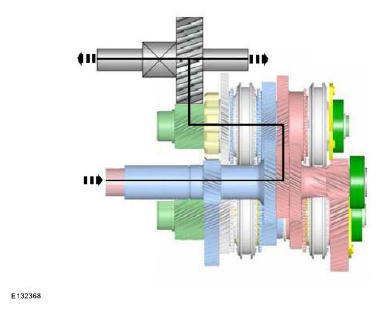

Fig 1: Third Gear Torque Flow Diagram

Courtesy of FORD MOTOR CO.

The torque is fed into the double clutch via the drive plate. From there, the torque is transferred via the driving disc, pressure plate 1 and clutch disc 1 onto the input shaft (core shaft). The input shaft (core shaft) transmits the torque to the third gear of the output shaft (3rd, 4th and reverse gear). The torque is transmitted to the differential via the output pinion.
