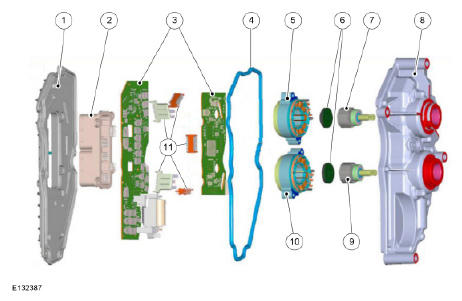

Exploded view of the TCM
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Rear housing |
| 2 | Connection |
| 3 | Control unit |
| 4 | Gasket |
| 5 | Stator coils (electric motor 1) |
| 6 | Bearings of the electric motors |
| 7 | Rotor with magnetic poles (electric motor 1) |
| 8 | Front housing |
| 9 | Rotor with magnetic poles (electric motor 2) |
| 10 | Stator coils (electric motor 2) |
| 11 | Control unit connector plug |
The control unit and the two brushless DC shift motors for changing gears are integrated in the TCM. The primary function of the TCM is to collect the incoming signals from the sensors, evaluate these signals and control the actuators accordingly. In service, the TCM can only be replaced as a complete unit .
