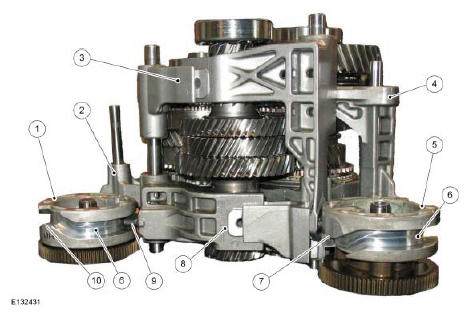

Overview of the gearshift system
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Gear selector drum 2 with spur gear |
| 2 | Selector fork - reverse gear/4th gear |
| 3 | Selector fork - 3rd gear |
| 4 | Selector fork - 1st/5th gear |
| 5 | Gear selector drum 1 with spur gear |
| 6 | Shift slot |
| 7 | Lower cam |
| 8 | Selector fork - 2nd/6th gear |
| 9 | Sliding block |
| 10 | Upper cam |
The shift slot in the gear selector drum has two counter-running cams on its circumference, which are offset by 180°. A slider which is connected to the selector fork is moved via the shift slot. If the slider moves up or down on the cam then the selector fork is moved accordingly in an axial direction, and as a result either a gear is engaged or the synchronizer assembly is moved to the neutral position.
