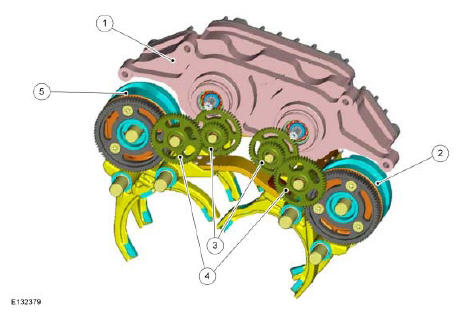

Layout of the internal gearshift mechanism
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Electric shift motors integrated in the TCM |
| 2 | Gear selector drum 2 with spur gear Comments: Controls the selector forks for 2nd/6th gear and 4th/reverse gear |
| 3 | Double spur gear 1 |
| 4 | Double spur gear 2 |
| 5 | Gear selector drum 1 with spur gear Comments: Controls the selector forks for 1st/5th gear as well as 3rd gear |
The gears are shifted by means of two brushless DC clutch actuator motors, which each actuate a gear selector drum via a two-stage transmission ratio. Both of the gear selector drums are identical and each have one shift slot for moving the selector forks. As a result of using the gear selector drum principle, no additional mechanical lock is required in order to prevent more than one gear being engaged at the same time in the same sub-transmission in the event of a fault.
