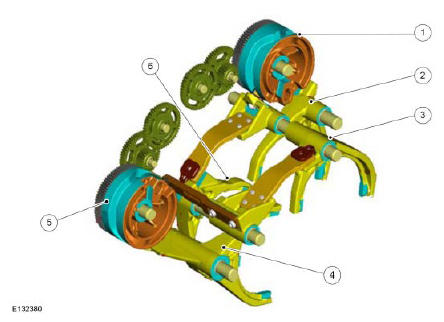

Layout of the gearshift system (schematic diagram)
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Gear selector drum 2 with spur gear |
| 2 | Selector fork - reverse gear/4th gear |
| 3 | Selector fork - 3rd gear |
| 4 | Selector fork - 1st/5th gear |
| 5 | Gear selector drum 1 with spur gear |
| 6 | Selector fork - 2nd/6th gear |
Each gear selector drum actuates two selector forks. The total angle of rotation of the gear selector drums is limited by means of two stops which are cast as an integral part of the transmission housing.
The angle of rotation of the gear selector drum 1 is 200°. The angle of rotation of the gear selector drum 2 is greater and measures 290°, as this gear selector drum is used to shift four gears.
