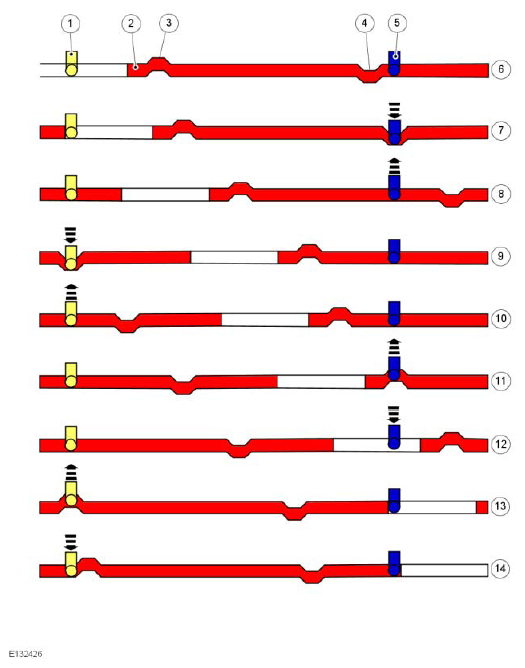

Function of the gear selector drum 2
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| 1 | Selector fork for 2nd/6th gear with slider |
| 2 | Shift slot of gear selector drum 2 Comments: In the colored area the angle of rotation is 290°. |
| 3 | Upper cam |
| 4 | Lower cam |
| 5 | Selector fork for reverse/4th Gear with slider |
| 6 | Lower end position (rotation angle 0°) |
| 7 | Rotation angle 10° Comments: Selector fork for reverse/4th gear is moved in an axial direction and reverse gear is engaged. |
| 8 | Rotation angle 55° Comments: Neutral position between reverse gear and 2nd gear |
| 9 | Rotation angle 100° Comments: The selector fork for 2nd/6th gear is moved axially and 2nd gear is engaged. |
| 10 | Rotation angle 145° Comments: Neutral position between 2nd gear and 4th gear |
| 11 | Rotation angle 190° Comments: Selector fork for reverse/4th gear is moved in an axial direction and 4th gear is engaged. |
| 12 | Rotation angle 235° Comments: Neutral position between 4th gear and 6th gear |
| 13 | Rotation angle 280° Comments: The selector fork for 2nd/6th gear is moved axially and 6th gear is engaged. |
| 14 | Upper end position (rotation angle 290°) |
