Function of the gear selector drum 1

WARNING: This page is about a different variant/trim than selected.

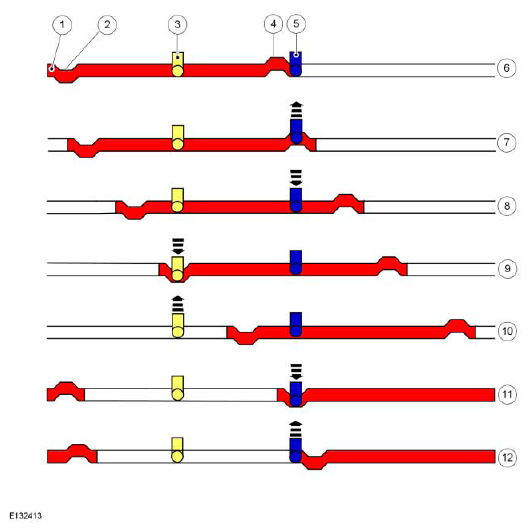

Fig 1: Function Diagram Of Gear Selector Drum 1
G08064020Courtesy of FORD MOTOR CO.
Item Description
1 Shift slot of gear selector drum 1
Comments:
In the colored area the angle of rotation is 200°.
2 Lower cam
3 Selector fork for 3rd gear with slider
4 Upper cam
5 Selector fork for 1st/5th gear with slider
6 Lower end position (rotation angle 0°)
7 Rotation angle 10°
Comments:
The selector fork for 1st/5th gear is moved axially and 1st gear is engaged.
8 Rotation angle 55°
Comments:
Neutral position between 1st gear and 3rd gear
9 Rotation angle 100°
Comments:
The selector fork for 3rd gear is moved axially and 3rd gear is engaged.
10 Rotation angle 145°
Comments:
Neutral position between 3rd gear and 5th gear
11 Rotation angle 190°
Comments:
The selector fork for 1st/5th gear is moved axially and 5th gear is engaged.
12 Upper end position (rotation angle 200°)
