Double clutch system
WARNING: This page is about a different variant/trim than selected.

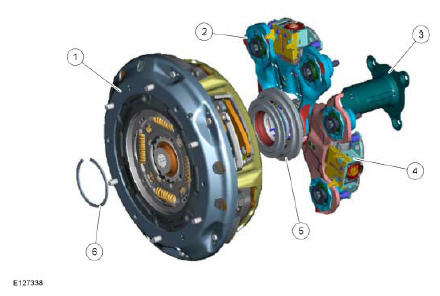

| Item | Description |
|---|---|
| 1 | Clutch unit |
| 2 | Electro-mechanical lever actuator 1 |
| 3 | Guide sleeve |
| 4 | Electro-mechanical lever actuator 2 |
| 5 | Engaging unit |
| 6 | Snap ring |
The clutch system consists of:
- the clutch unit
- the engaging unit
- the two electromechanical lever actuators, each of which is actuated by a brushless DC clutch actuator motor.
The clutch unit is connected to the two input shafts of the transmission and attached to the drive plate with nuts. The nuts need to be removed from the drive plate if the transmission is removed.
