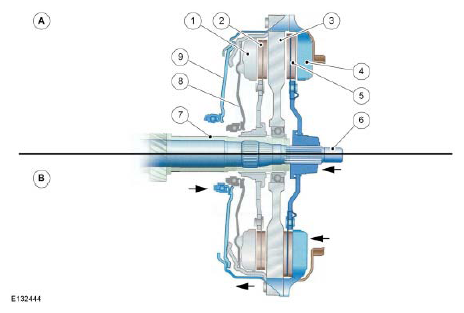

Schematic diagram of the open and closed clutch
WARNING: This page is about a different variant/trim than selected.
| Item | Description |
|---|---|
| A | Clutch in the rest state (open) |
| B | Clutch 1 closed |
| 1 | Pressure plate 2 |
| 2 | Clutch disc 2 |
| 3 | Driving disc |
| 4 | Pressure plate 1 |
| 5 | Clutch disc 1 |
| 6 | Input shaft (core shaft) |
| 7 | Input shaft (hollow shaft) |
| 8 | Lever spring 2 |
| 9 | Lever spring 1 |
The two lever springs open the clutches in the rest state. They are closed through actuation of the relevant engaging bearing, which acts on the corresponding lever spring. By pressing the lever springs, the relevant pressure plate is pressed against the clutch disc and the driving disc.
