Transmission components
WARNING: This page is about a different variant/trim than selected.

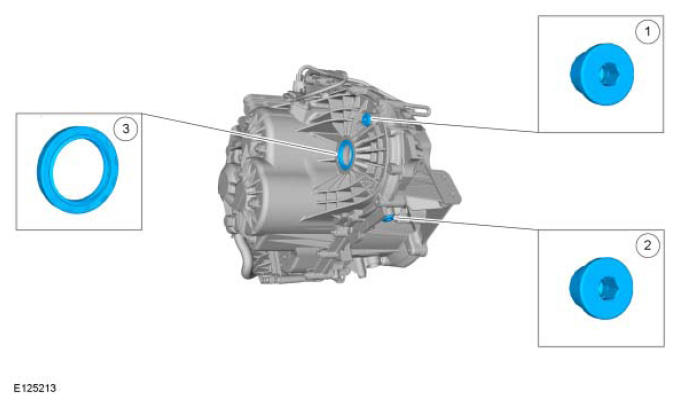

| Item | Description |
|---|---|
| 1 | Oil filler plug and level check plug |
| 2 | Oil drain plug |
| 3 | Halfshaft seal |

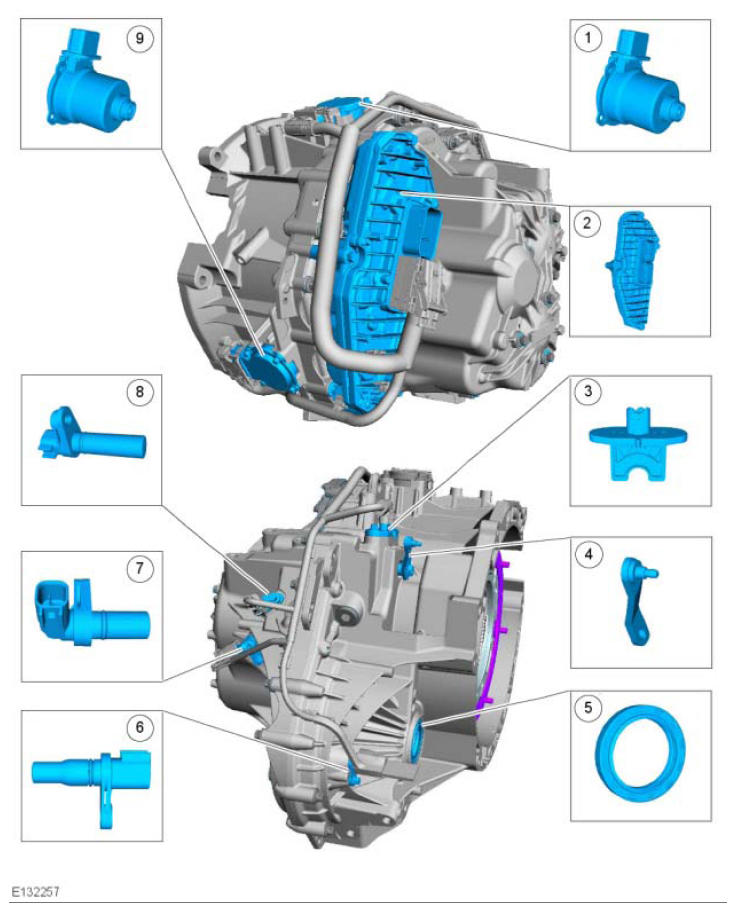

| Item | Description |
|---|---|
| 1 | DC clutch actuator motor 1 Comments: Actuates the 1st, 3rd and 5th gear clutch via an electromechanical lever actuator |
| 2 | TCM |
| 3 | The TR sensor |
| 4 | Gearshift shaft lever |
| 5 | Halfshaft seal |
| 6 | The OSS sensor |
| 7 | ISS sensor 1 of the input shaft (core shaft) |
| 8 | ISS sensor 2 of the input shaft (core shaft) |
| 9 | DC clutch actuator motor 2 Comments: Actuates the clutch for 2nd, 4th and 6th gear as well as the reverse gear via an electromechanical lever actuator |
All sensors, actuators and the TCM are located on the outside of the transmission.
