Dual Clutch
WARNING: This page is about a different variant/trim than selected.

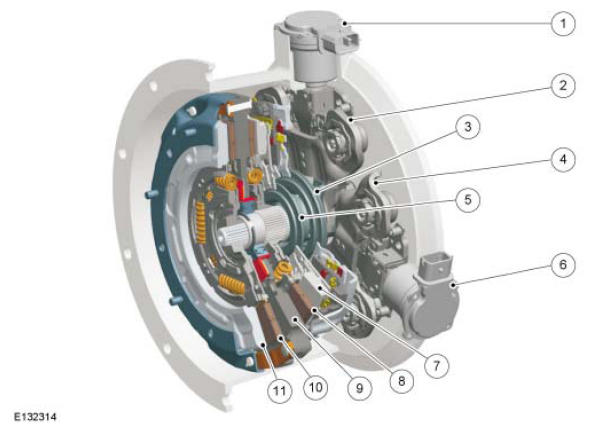

| Item | Description |
|---|---|
| 1 | DC clutch actuator motor 1 Comments: Actuates the clutch for 1st, 3rd and 5th gear via the electromechanical lever actuator 1 |
| 2 | Electro-mechanical lever actuator 1 |
| 3 | Engaging disc with engaging bearing 1 Comments: Actuates the pressure plate for the 1st, 3rd and 5th gear (input shaft (core shaft)) |
| 4 | Electro-mechanical lever actuator 2 |
| 5 | Engaging disc with engaging bearing 2 Comments: Actuates the pressure plate for the 2nd, 4th, 6th gear and reverse gear (input shaft (hollow shaft)) |
| 6 | DC clutch actuator motor 2 Comments: Actuates the clutch for 2nd, 4th and 6th gear as well as the reverse gear via the electromechanical lever actuator 2 |
| 7 | Pressure plate 2 |
| 8 | Clutch disc 2 |
| 9 | Driving disc |
| 10 | Clutch disc 1 |
| 11 | Pressure plate 1 |
The clutch system which is used is a dry double clutch with independent wear adjustment systems. The clutches are disengaged in their rest state. The double clutch is actuated via two electromechanical lever actuators. The clutches are actuated via an engaging unit which comprises two engaging bearings and two engaging discs.
