Removal and Installation: Radiator: Removal

WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in SERVICE INFORMATION General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: HEALTH AND SAFETY PRECAUTIONS .
Fig 1: Identifying Pressure Relief Cap
Courtesy of FORD MOTOR CO.
Torque: 8 Nm

Fig 2: Locating Tube Retainer
Courtesy of FORD MOTOR CO.

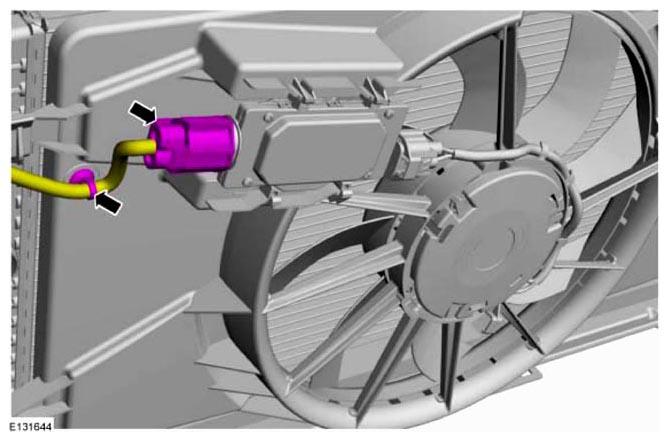

Fig 3: Locating Cooling Fan Motor Wiring Harness Connector And Clip
Courtesy of FORD MOTOR CO.
Refer to: Cooling System Draining and Vacuum Filling .
Refer to: CHARGE AIR COOLER (CAC) .

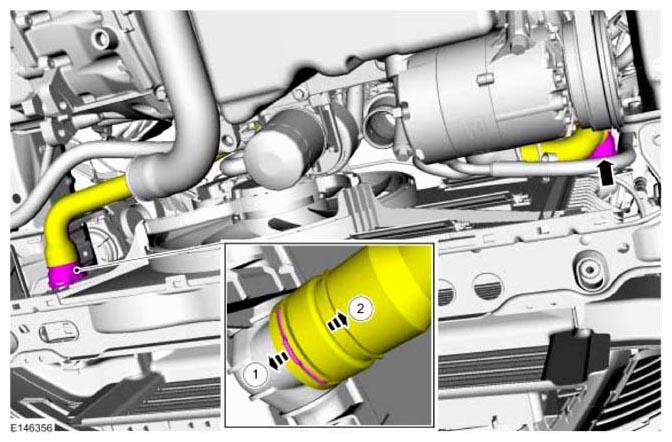

Fig 4: Removing Charge Air Cooler Hose Clamp
Courtesy of FORD MOTOR CO.
On both sides.
General Equipment: Transmission Jack

Torque: 25 Nm

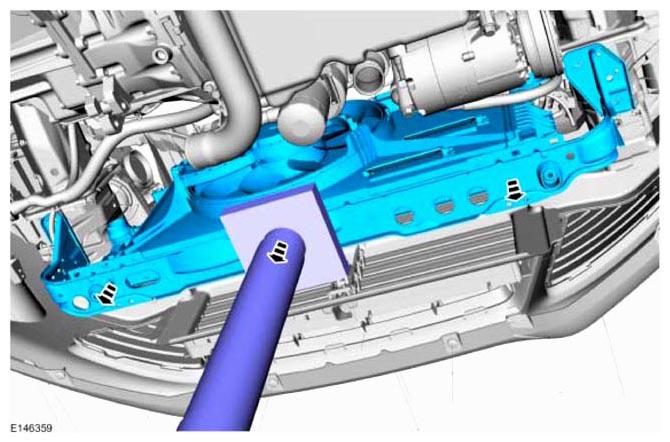

Fig 5: Identifying Transmission Jack
Courtesy of FORD MOTOR CO.

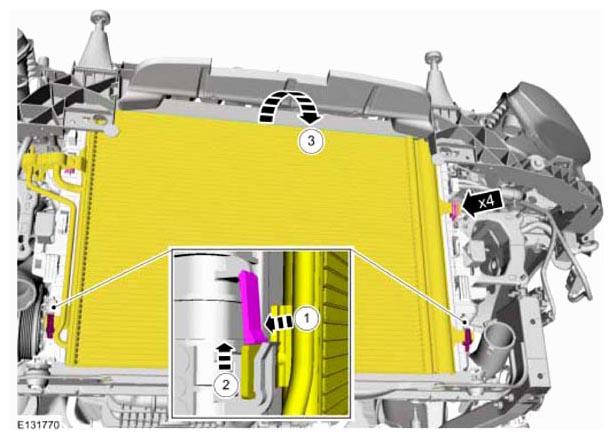

Fig 6: Removing Radiator Core
Courtesy of FORD MOTOR CO.
General Equipment: Knife

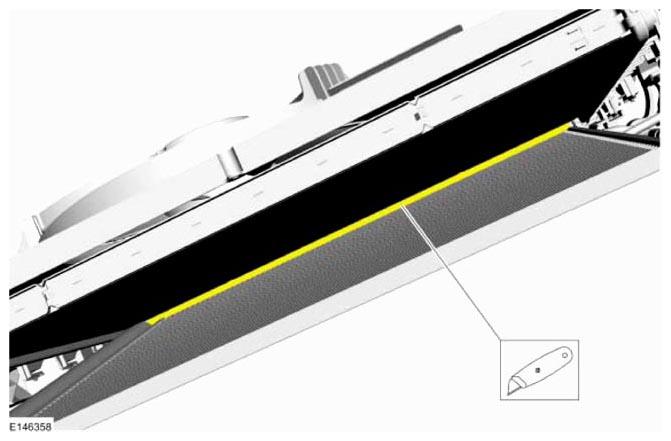

Fig 7: Identifying Knife
Courtesy of FORD MOTOR CO.
General Equipment: Transmission Jack

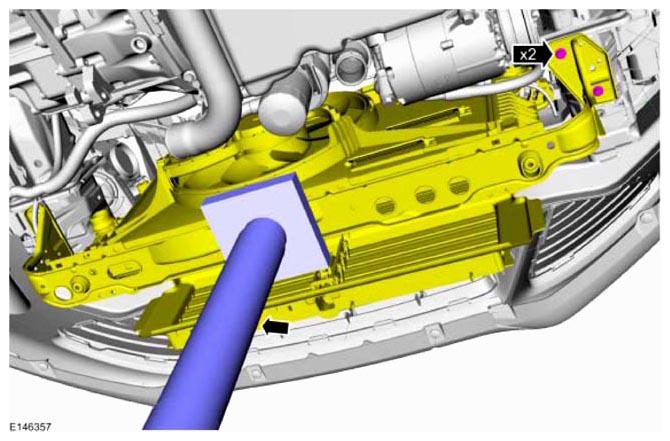

Fig 8: Identifying Transmission Jack
Courtesy of FORD MOTOR CO.

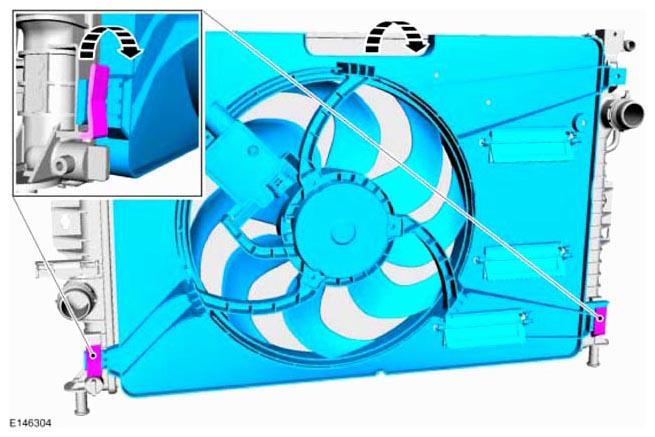

Fig 9: Removing Cooling Fan Motor Bracket Clips
Courtesy of FORD MOTOR CO.
