Cooling Fan Motor and Shroud: Removal

WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in SERVICE INFORMATION General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: HEALTH AND SAFETY PRECAUTIONS .
Refer to: AIR CLEANER .
Fig 1: Locating Cooling Fan Motor Wiring Harness Connector And Clip
Courtesy of FORD MOTOR CO.
Fig 2: Removing Cooling Fan Motor Bracket Clips
Courtesy of FORD MOTOR CO.
Refer to: JACKING AND LIFTING - OVERVIEW .
Fig 3: Locating Lower Strip Mounting Bolts
Courtesy of FORD MOTOR CO.
If equipped.

Fig 4: Locating Engine Lower Cover Bolts
Courtesy of FORD MOTOR CO.
Fig 5: Locating Radiator Air Deflector Cover Pushpins And Screws
Courtesy of FORD MOTOR CO.
Fig 6: Locating Cooling Fan Motor Wiring Harness Connectors And Clip
Courtesy of FORD MOTOR CO.
Loosen: 3 turn(s)

Fig 7: Locating Bracket Bolts
Courtesy of FORD MOTOR CO.
Fig 8: Locating Hose Clamps
Courtesy of FORD MOTOR CO.

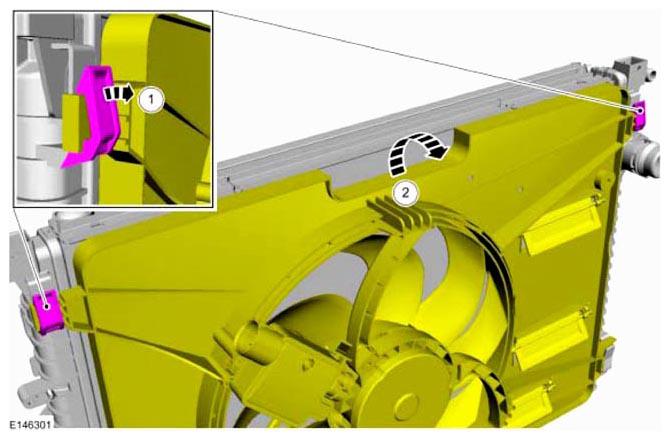

Fig 9: Removing Cooling Fan Motor Bracket Clips
Courtesy of FORD MOTOR CO.
