Cooling Fan Motor and Shroud: Installation

WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.
  2. Torque: 25 Nm

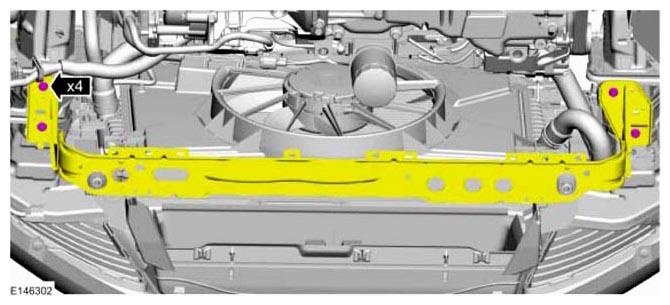

    Fig 1: Locating Bracket Bolts
    G08063749Courtesy of FORD MOTOR CO.
