Engine Cooling - Component Location

WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

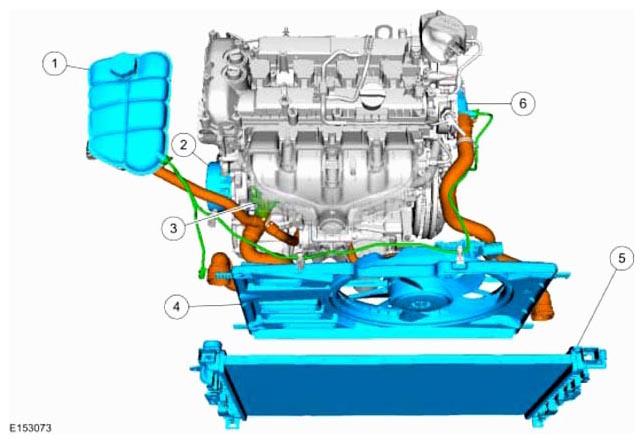

Fig 1: Identifying Engine Cooling Component Location

Courtesy of FORD MOTOR CO.

Item	Description
1	Degas bottle
2	Coolant pump
3	Thermostat housing
4	Cooling fan motor and shroud
5	Radiator
6	Coolant distribution connection
