Throttle Body: Removal

WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in SERVICE INFORMATION General Information. Failure to follow this instruction may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Health and Safety Precautions ( HEALTH AND SAFETY PRECAUTIONS ).
Refer to: Jacking and Lifting - Overview ( JACKING AND LIFTING - OVERVIEW ).
Fig 1: Locating Engine Lower Cover Bolts
Courtesy of FORD MOTOR CO.
Torque : 5 Nm

Fig 2: Locating Hose Clamp
Courtesy of FORD MOTOR CO.
Torque : 10 Nm

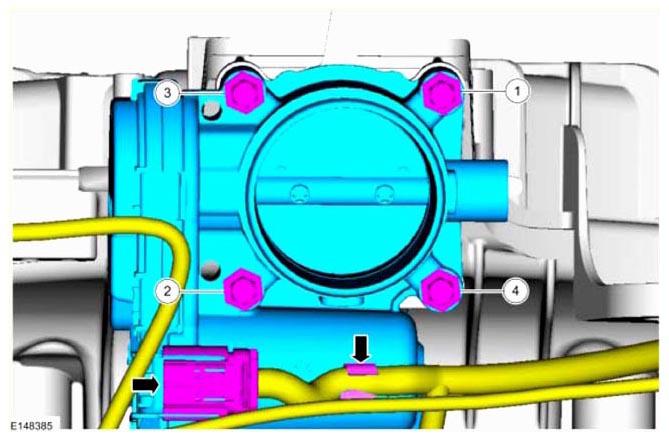

Fig 3: Identifying Throttle Body Bolts
Courtesy of FORD MOTOR CO.

NOTE: Make sure that a new Throttle Body (TB) gasket is installed.

Fig 4: Identifying Throttle Body (TB) Gasket

Courtesy of FORD MOTOR CO.

Discard the specified component. Follow local disposal regulations.
