Fuel Rail: Installation

WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Installing Lower Fuel Injector Teflon® Seals
Courtesy of FORD MOTOR CO.
1. Pull the lower Teflon® seal away from the injector.
2. Carefully cut and discard the lower fuel injector Teflon® seals.
Fig 2: Cutting Lower Fuel Injector Teflon® Seals
Courtesy of FORD MOTOR CO.
NOTE: Place the Teflon® Seal Sizer, knurled side out, over the fuel injector tip until the fuel injector seal recess is exposed.
1. Special Tool(s) : 303-1567 (Sizer, Teflon Seal)
2. Special Tool(s) : 310-207 (Installer, Fuel Injector Seal Assembly)
3. NOTE: Make sure that new lower fuel injector Teflon® seals are installed.
4. Special Tool(s) : 310-207 (Installer, Fuel Injector Seal Assembly)

  Fig 3: Installing Lower Fuel Injector Teflon® Seals Using Special Tools
  Courtesy of FORD MOTOR CO.

NOTE: Make sure the Teflon® seal is fully seated in the groove on the fuel injector before sizing the seal.

NOTE: Install the fuel injectors into the cylinder head within 15 minutes of sizing the seals due to Teflon® seal expansion.

Fig 4: Installing Teflon® Seal In Groove On Fuel Injector

Courtesy of FORD MOTOR CO.

Special Tool(s) : 303-1567 (Sizer, Teflon Seal)

NOTE: Use fuel injector O-ring seals that are made of special fuel-resistant material. The use of ordinary O-ring seals may cause the fuel system to leak. Do not reuse the O-ring seals.

NOTE: Do not lubricate the new lower Teflon® fuel injector seals.

Fig 5: Lubricating Lower Teflon® Fuel Injector Seals

Courtesy of FORD MOTOR CO.

Material : Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)
NOTE: The FRP sensor must be replaced if it is removed from the fuel rail.

NOTE: The anti-rotation finger of the fuel injector clip must slip into the groove of the fuel rail cup.

Fig 6: Installing Fuel Injectors
Courtesy of FORD MOTOR CO.

NOTE: Do not lubricate the new lower Teflon® fuel injector seals.

NOTE: Make sure that new fuel rail bolts are installed.

Fig 7: Identifying Fuel Rail Bolts

Courtesy of FORD MOTOR CO.

Push down on the fuel rail above the injectors.
Torque :

Stage 1: 8 Nm

Stage 2: 26°
Fig 8: Locating Fuel Injectors Connectors
Courtesy of FORD MOTOR CO.

NOTE: Only tighten the 2 high pressure fuel tube flare nuts finger tight at this stage.

NOTE: Only tighten 2 high pressure fuel tube bracket bolts finger tight at this stage.

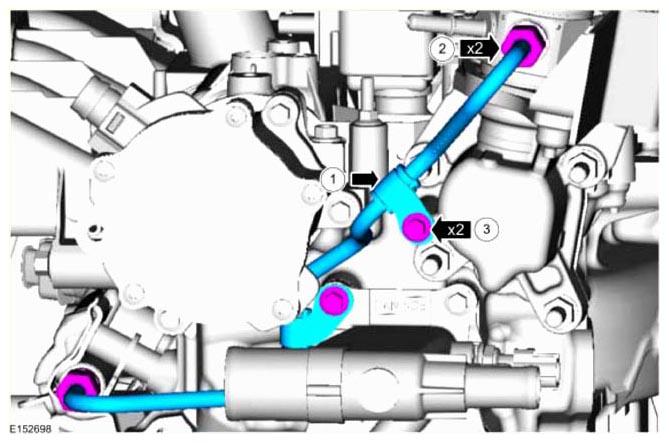

Fig 10: Locating High Pressure Fuel Tube Flare Nuts

Courtesy of FORD MOTOR CO.

Install the following items:
1. NOTE: Make sure that a new high pressure fuel tube is installed.
2. Torque :
  Stage 1: 15 Nm

  Stage 2: 30°
3. Torque : 10 Nm
Fig 11: Locating Fuel Injection Pump Connector
Courtesy of FORD MOTOR CO.
NOTE: Use care when installing the fuel injection pump noise insulator. Spreading the openings will aid in installing the fuel injection pump noise insulator and reduce the risk of damage.

Fig 12: Locating Fuel Injection Pump Noise Insulator Connector
Courtesy of FORD MOTOR CO.
Install the following items:
1. Torque : 5 Nm
2. Torque : 5 Nm
Fig 13: Locating Fuel Injection Pump Hose Clamps And Bracket Bolt
Courtesy of FORD MOTOR CO.
Refer to: Intake Manifold ( INTAKE MANIFOLD ).
Refer to: Battery Disconnect and Connect ( BATTERY DISCONNECT AND CONNECT ).
Refer to: Fuel System Pressure Release ( FUEL SYSTEM PRESSURE RELEASE ).
