2.0L Gasoline Turbocharged Direct Injection (GTDI)

WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

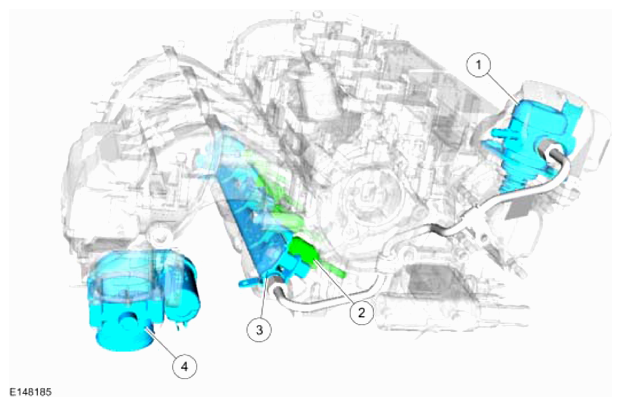

Fig 1: Identifying Fuel Charging And Controls Components - 2.0L Gasoline Turbocharged Direct Injection (GTDI)
G08056196Courtesy of FORD MOTOR CO.
Item Description
1 Fuel injection pump
2 Fuel injector
3 Fuel rail
4 Throttle Body (TB)
