Accessory Drive - Component Location
WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

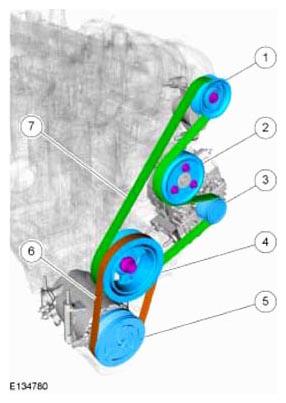

Typical application shown in illustration.
| Item | Description |
|---|---|
| 1 | Automatic belt tensioner, accessories drive belt |
| 2 | Coolant pump pulley |
| 3 | Generator pulley |
| 4 | Crankshaft pulley / vibration damper |
| 5 | Pulley - A/C compressor |
| 6 | Multi-groove belt, A/C compressor |
| 7 | Multi-groove belt, accessory units (excluding A/C compressor) |
