2.0L Gasoline Turbocharged Direct Injection (GTDI)

WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

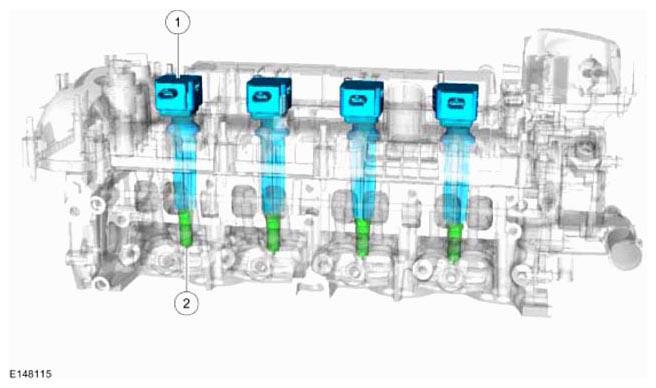

Fig 1: Identifying Engine Ignition Component Location - 2.0L GTDI
G08063945Courtesy of FORD MOTOR CO.
Item Description
1 Ignition coil-on-plug(s)
2 Spark plug(s)
