Section 3 (Engine Mechanical - 2.0L ECOBOOST): Removal: Engine

WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S) / GENERAL EQUIPMENT

	014-00001 ADJUSTABLE GRIP 1735A
	300-OTC1585AE Powertrain Lift
	300-OTC1819E 2, 200# Floor Crane, Fold Away
Hose Clamp Remover/Installer
Wooden Block

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in SERVICE INFORMATION General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: HEALTH AND SAFETY PRECAUTIONS .
Refer to: JACKING AND LIFTING - OVERVIEW .
Refer to: AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING .
Refer to: FUEL SYSTEM PRESSURE RELEASE .
Fig 1: Locating Underbody Shield Bolts
Courtesy of FORD MOTOR CO.
Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .
Remove the following items:
1. Refer to: DEGAS BOTTLE .
2. Refer to: AIR CLEANER .
3. Refer to: AIR CLEANER OUTLET PIPE .
4. Refer to: COOLING MODULE .
Fig 2: Identifying Fuse Box Cover
Courtesy of FORD MOTOR CO.
Fig 3: Locating Engine Wiring Harness Electrical Connectors And Wiring Harness Retainers
Courtesy of FORD MOTOR CO.
Refer to: BATTERY TRAY .
Fig 4: Locating Engine Wiring Harness Retainers
Courtesy of FORD MOTOR CO.
Fig 5: Locating Engine Wiring Harness Electrical Connectors, Wiring Harness Retainers And Ground Points
Courtesy of FORD MOTOR CO.
Refer to: POWERTRAIN CONTROL MODULE (PCM) .
Fig 6: Locating Wiring Harness Bracket Bolt
Courtesy of FORD MOTOR CO.
Fig 7: Locating Transaxle Selector Lever Cable End
Courtesy of FORD MOTOR CO.
Fig 8: Locating Hose Coupling
Courtesy of FORD MOTOR CO.
Fig 9: Locating Hose
Courtesy of FORD MOTOR CO.
1. Refer to: QUICK RELEASE COUPLING .
  General Equipment : Hose Clamp Remover/Installer
Fig 10: Locating Clamps, Upper Radiator Hose, Heater Hose, Hose Quick Connect Coupling And Retaining Clips
Courtesy of FORD MOTOR CO.
Fig 11: Locating Tube Coupling Bolt
Courtesy of FORD MOTOR CO.
Fig 12: Locating Wiring Harness Electrical Connectors And Wiring Harness Retainers
Courtesy of FORD MOTOR CO.
Fig 13: Locating Tube Bracket Bolts
Courtesy of FORD MOTOR CO.
Fig 14: Locating Transaxle Fluid Cooler Tube Clamps
Courtesy of FORD MOTOR CO.
Remove the following items:
1. Refer to: FRONT HALFSHAFT LH .
2. Refer to: FRONT HALFSHAFT RH .
Discard the specified component. Follow local disposal regulations.

Fig 15: Locating Exhaust Pipe Coupling Nuts
Courtesy of FORD MOTOR CO.
Discard the specified component. Follow local disposal regulations.

Fig 16: Locating Exhaust Pipe Gasket
Courtesy of FORD MOTOR CO.
Fig 17: Locating Turbocharger Bracket Nuts
Courtesy of FORD MOTOR CO.
3. If equipped.

Fig 18: Locating Turbocharger Brackets
Courtesy of FORD MOTOR CO.
Discard the specified component. Follow local disposal regulations.

Fig 19: Locating Turbocharger Pipe Clamp
Courtesy of FORD MOTOR CO.
Fig 20: Locating Turbocharger Pipe Bracket Bolts
Courtesy of FORD MOTOR CO.
Relocate and support the component.

Fig 21: Identifying Turbocharger Pipe Support
Courtesy of FORD MOTOR CO.
Discard the specified component. Follow local disposal regulations.

Fig 22: Identifying Turbocharger O-Ring
Courtesy of FORD MOTOR CO.
Fig 23: Locating Transmission Bracket Nuts
Courtesy of FORD MOTOR CO.
Fig 24: Locating Transaxle Support Insulator Through Bolts
Courtesy of FORD MOTOR CO.
Discard the specified component. Follow local disposal regulations.

Fig 25: Identifying Engine Oil Filter
Courtesy of FORD MOTOR CO.
Install the Special Tool(s) : 300-OTC1585AE (Powertrain Lift) , 014-00001 (ADJUSTABLE GRIP 1735A)
General Equipment : Wooden Block

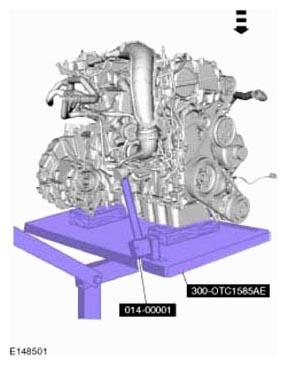

Fig 26: Lifting Engine Using Powertrain Lift (300-OTC1585AE)
Courtesy of FORD MOTOR CO.
Fig 27: Locating Transaxle Support Insulator Bracket Nuts
Courtesy of FORD MOTOR CO.
Fig 28: Locating Transaxle Support Insulator Bracket Bolt
Courtesy of FORD MOTOR CO.
Fig 29: Locating Nuts, Bolts And Engine Mount
Courtesy of FORD MOTOR CO.
Special Tool(s) : 300-OTC1585AE (Powertrain Lift) , 014-00001 (ADJUSTABLE GRIP 1735A)
General Equipment : Wooden Block

Fig 30: Identifying Powertrain Lift And Adjustable Grip Arms
Courtesy of FORD MOTOR CO.
Fig 31: Locating Hose Bracket, Nut And Retainer
Courtesy of FORD MOTOR CO.
Fig 32: Locating Starter Stud Bolts And Nuts
Courtesy of FORD MOTOR CO.
Fig 33: Locating Starter Cable Cover Nuts
Courtesy of FORD MOTOR CO.
Fig 34: Locating Starter Insulator
Courtesy of FORD MOTOR CO.
Fig 35: Identifying Positive Crankcase Ventilation Tube
Courtesy of FORD MOTOR CO.
Install the Special Tool(s) : 300-OTC1819E (2, 200# Floor Crane, Fold Away)

Fig 36: Installing Floor Crane And Spreader Bar On Engine
Courtesy of FORD MOTOR CO.
Remove the Special Tool(s) : 300-OTC1585AE (Powertrain Lift) , 014-00001 (ADJUSTABLE GRIP 1735A)
General Equipment : Wooden Block

Fig 37: Lifting Engine Using Powertrain Lift (300-OTC1585AE)
Courtesy of FORD MOTOR CO.
Fig 38: Locating Transaxle-To-Engine Bolts
Courtesy of FORD MOTOR CO.
Fig 39: Locating Transaxle-To-Engine Bolt And Hose Retainer
Courtesy of FORD MOTOR CO.
Fig 40: Locating Engine-To-Transaxle Bolts
Courtesy of FORD MOTOR CO.
Two people required.

Fig 41: Locating Transaxle-To-Engine Bolts
Courtesy of FORD MOTOR CO.
