Valve Stem Seals: Installation

WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the specified lubricant to the specified component.

    Special Tool(s)  : 303-470 (Installer, Valve Stem Oil Seal)

    Material  : Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

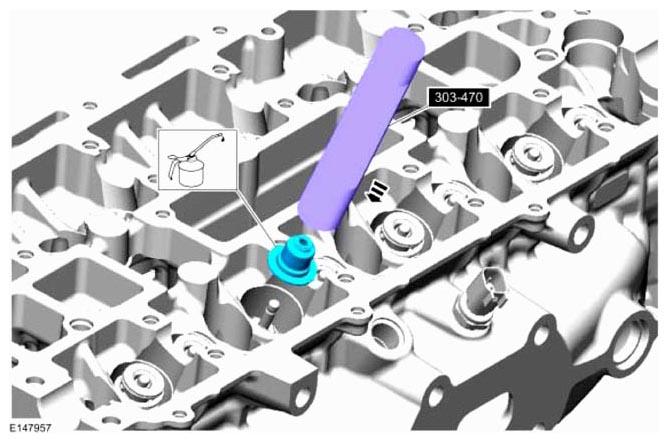

    Fig 1: Installing Valve Stem Seals
    G08063216Courtesy of FORD MOTOR CO.
  2. Refer to: Valve Springs  .
