Valve Cover: Removal

WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.

Refer to: JACKING AND LIFTING - OVERVIEW .
Refer to: COWL PANEL GRILLE .
Refer to: BATTERY DISCONNECT AND CONNECT .
Fig 1: Locating Hose Boot Clamps And Bracket Nut
Courtesy of FORD MOTOR CO.
Fig 2: Locating Underbody Shield Bolts
Courtesy of FORD MOTOR CO.
Fig 3: Locating Hose Boot Clamps And Hose Connections
Courtesy of FORD MOTOR CO.
Fig 4: Locating Intake Manifold Hose Bracket Bolt And Stud
Courtesy of FORD MOTOR CO.
Refer to: IGNITION COIL-ON-PLUG .
Fig 5: Locating Intake Manifold Harness Connectors
Courtesy of FORD MOTOR CO.
Fig 6: Locating Wire Harness Connectors
Courtesy of FORD MOTOR CO.
1. Refer to: QUICK RELEASE COUPLING .
Fig 7: Locating Fuel System Quick Release Coupling
Courtesy of FORD MOTOR CO.

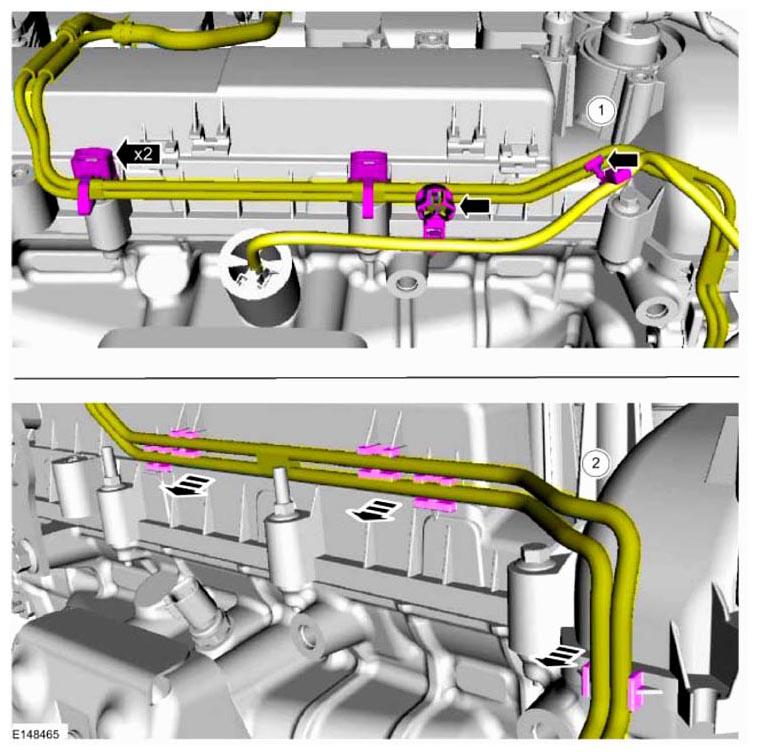

1. Early build vehicles equipped with metal vacuum tubes.
2. Late build vehicles equipped with nylon vacuum tubes.
Fig 8: Locating Metal Vacuum Tubes And Nylon Vacuum Tubes Retainers
Courtesy of FORD MOTOR CO.
Fig 9: Identifying Vacuum Tube Bolts
Courtesy of FORD MOTOR CO.
Fig 10: Locating Valves Cover Bolts
Courtesy of FORD MOTOR CO.
Discard the specified component. Follow local disposal regulations.

Fig 11: Applying Sealant To Valves Cover
Courtesy of FORD MOTOR CO.
NOTE: The VCT solenoid seals should only be replaced if they are damaged.
- Visual check.
- Discard the specified component. Follow local disposal regulations.
  Special Tool(s) : 205-153 (Handle) , 303-1247/1 (Remover, VCT Spark Plug Tube Seal)

Fig 12: Removing VCT Solenoid Seals Using VCT Spark Plug Tube Seal Remover And Handle

Courtesy of FORD MOTOR CO.
