Valve Cover: Installation

WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.
    Fig 1: Cleaning Valve Cover
    G08063004Courtesy of FORD MOTOR CO.
  1. Clean the specified component with the specified material.

    Material  : Motorcraft® Metal Surface Prep / ZC-31-A

  2. NOTE: Installation of new seals is only required if damaged seals were removed during disassembly of the engine.
    Fig 2: Installing VCT Solenoid Seals Using VCT Spark Plug Tube Seal Installer And Handle
    G08062837Courtesy of FORD MOTOR CO.
  3. Special Tool(s)  : 205-153 (Handle)  , 303-1247/2 (Installer, VCT Spark Plug Tube Seal)
  4. Fig 3: Applying Sealant On Valve Cover
    G08063006Courtesy of FORD MOTOR CO.
  5. Apply a bead of the specified diameter from the specified tube.

    Material  : Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

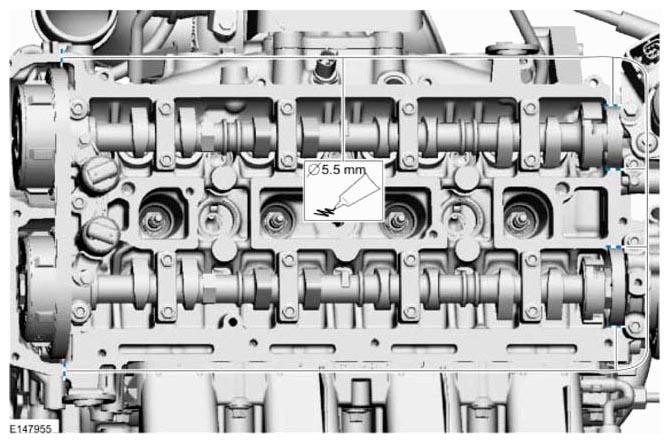

    Fig 4: Identifying Silicone Gasket And Sealant Applying Areas
    G08063007Courtesy of FORD MOTOR CO.
  6. NOTE: The valve cover must be secured within 10 minutes of silicone gasket application. If the valve cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with metal surface prep.

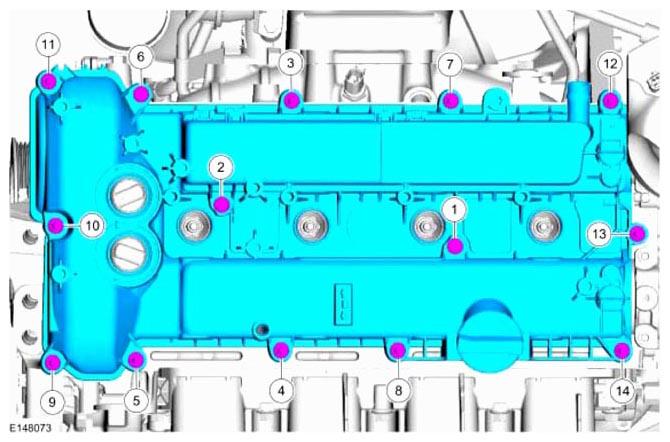

    Fig 5: Identifying Valve Cover Bolts Tightening Sequence
    G08063008Courtesy of FORD MOTOR CO.
  7. Material  : Motorcraft® Metal Surface Prep / ZC-31-A

    Torque  : 10 Nm

  8. Torque  :

    1 10 Nm

    2 25 Nm

    Fig 6: Identifying Vacuum Tube Bolts
    G08063000Courtesy of FORD MOTOR CO.
    1. Early build vehicles equipped with metal vacuum tubes.
    2. Late build vehicles equipped with nylon vacuum tubes.

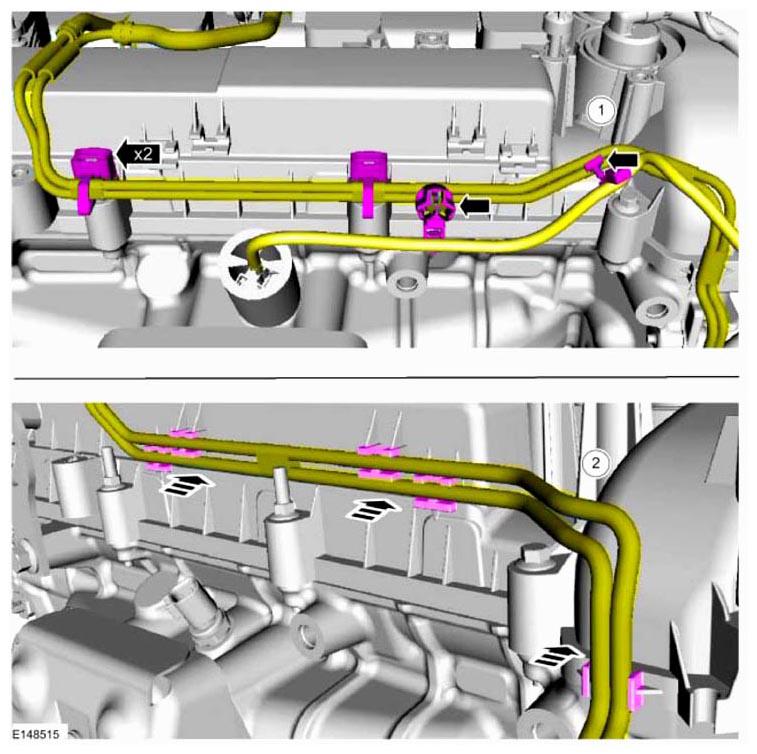

    Fig 7: Identifying Engine Wiring Harness Electrical Connectors And Wiring Harness Retainers
    G08063010Courtesy of FORD MOTOR CO.
    1. Refer to: QUICK RELEASE COUPLING .
    Fig 8: Locating Fuel System Quick Release Coupling
    G08062998Courtesy of FORD MOTOR CO.

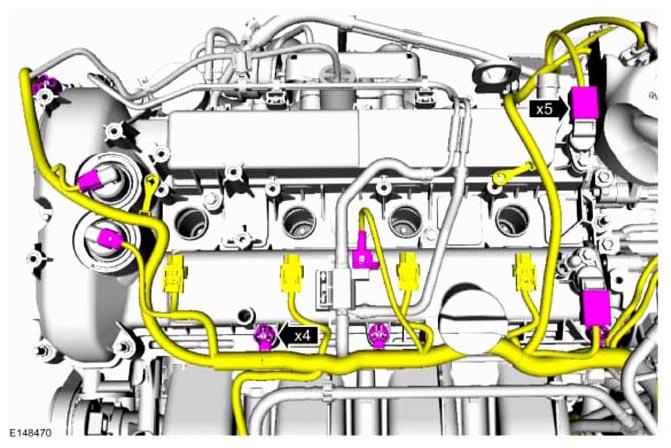

  9. Fig 9: Locating Wire Harness Connectors
    G08062997Courtesy of FORD MOTOR CO.
  10. Fig 10: Locating Intake Manifold Harness Connectors
    G08062996Courtesy of FORD MOTOR CO.
  11. Refer to: IGNITION COIL-ON-PLUG .
  12. Torque  : 12 Nm
    Fig 11: Locating Intake Manifold Hose Bracket Bolt And Stud
    G08062995Courtesy of FORD MOTOR CO.
    • Torque  : 5 Nm
    Fig 12: Locating Hose Boot Clamps And Hose Connections
    G08062994Courtesy of FORD MOTOR CO.
  13. Fig 13: Locating Underbody Shield Bolts
    G08064967Courtesy of FORD MOTOR CO.
  14. Torque  : 12 Nm

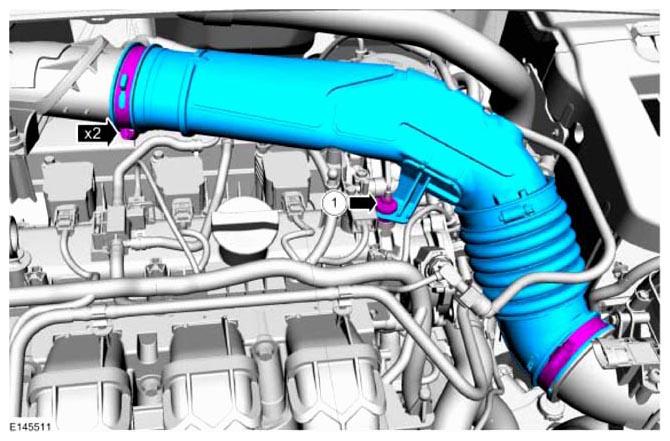

    Fig 14: Locating Hose Boot Clamps And Bracket Nut
    G08062992Courtesy of FORD MOTOR CO.
  15. Refer to: BATTERY DISCONNECT AND CONNECT .
  16. Refer to: COWL PANEL GRILLE .
