Timing Drive Components: Removal

WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction, using diamond washers between the flange faces on each part. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan can cause engine failure.
  1. Refer to: JACKING AND LIFTING - OVERVIEW .
  2. Remove the following items:
    1. Fuel injection pump and tappet.

      Refer to: FUEL INJECTION PUMP .

    2. RH fender splash shield.

      Refer to: FENDER SPLASH SHIELD .

  3. NOTE: The fuel injection cam lobe must be positioned at zero lift before removing the fuel injection pump housing.
    Fig 1: Rotating Engine Clockwise Until Fuel Injection Cam Lobe Is At Zero Lift Using Crankshaft Pulley Bolt
    G08063062Courtesy of FORD MOTOR CO.
  4. Turn the component clockwise.

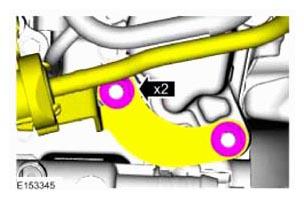

  5. Fig 2: Locating Fuel Injection Pump Housing And Bolts
    G08063063Courtesy of FORD MOTOR CO.
  6. Fig 3: Locating Fuel Injection Pump Housing Stud Bolts
    G08063064Courtesy of FORD MOTOR CO.
  7. Refer to: Engine Front Cover  .
  8. NOTE: The Camshaft Alignment Tool is for camshaft alignment only. Do not rely on the Camshaft Alignment Tool to prevent camshaft rotation. Damage to the tool or the camshaft can occur.
    Fig 4: Installing Camshaft Alignment Tool Into Rear Of Both Of Camshaft Slots
    G08028606Courtesy of FORD MOTOR CO.
  9. Install the Special Tool(s)  : 303-1565 (Alignment Tool, Camshaft)
  10. NOTE: Use an open-ended wrench to prevent the component from turning.
    Fig 5: Loosening Exhaust Camshaft Phaser And Sprocket Bolt Using Wrench On Flats Of Exhaust Camshaft To Prevent Camshaft Rotation
    G08062698Courtesy of FORD MOTOR CO.
  11. Loosen bolt.
  12. NOTE: Use an open-ended wrench to prevent the component from turning.
    Fig 6: Loosening Intake Camshaft Phaser And Sprocket Bolt Using Wrench On Flats Of Intake Camshaft To Prevent Camshaft Rotation
    G08062699Courtesy of FORD MOTOR CO.
  13. Loosen bolt.
    1. Using a small pick, release and hold the ratchet mechanism.
    2. While holding the ratchet mechanism in the released position, compress the tensioner by pushing the timing chain arm toward the tensioner.
    3. Insert a holding pin into the hole to retain the tensioner.
    Fig 7: Compressing Timing Chain Tensioner
    G08063068Courtesy of FORD MOTOR CO.
  14. Fig 8: Locating Timing Chain Tensioner Bolts
    G08063069Courtesy of FORD MOTOR CO.
  15. Fig 9: Locating Timing Chain Tensioner Arm And Bolts
    G08063070Courtesy of FORD MOTOR CO.
