Oil Pump: Removal

WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Refer to: JACKING AND LIFTING - OVERVIEW .
Refer to: BATTERY DISCONNECT AND CONNECT .
Refer to: Engine Front Cover .

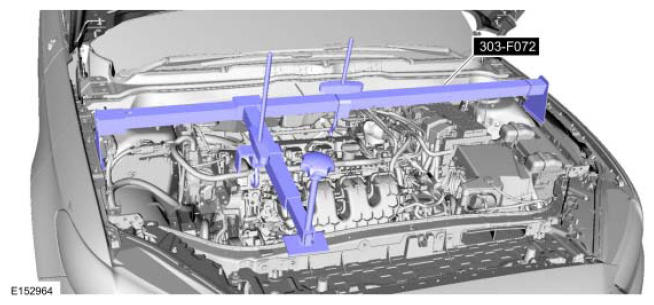

Install the Special Tool(s) : 303-F072 (Support Bar, Engine)

Fig 1: Identifying Engine Support Bar
Courtesy of FORD MOTOR CO.
Fig 2: Locating Hose Clamps And Pipe Bracket Bolts
Courtesy of FORD MOTOR CO.
Fig 3: Locating Hose Clamps
Courtesy of FORD MOTOR CO.
Relocate and support the component.

Fig 4: Locating A/C Compressor Bolts And Connector
Courtesy of FORD MOTOR CO.
Torque : 27 Nm

Fig 5: Locating Drain Plug
Courtesy of FORD MOTOR CO.
Fig 6: Locating Bellhousing-To-Oil Pan Bolts And Nut
Courtesy of FORD MOTOR CO.
Fig 7: Locating Oil Pan Bolts
Courtesy of FORD MOTOR CO.
Discard the specified component. Follow local disposal regulations.

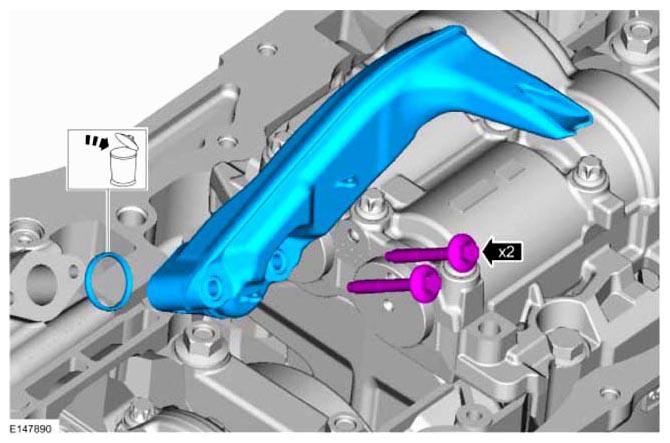

Fig 8: Locating Bolts And Oil Pump Screen And Pickup Tube
Courtesy of FORD MOTOR CO.
WARNING: Take extra care when handling the compressed spring.

Fig 9: Locating Tensioner Spring And Shoulder Bolt
Courtesy of FORD MOTOR CO.
Fig 10: Locating Oil Pump Sprocket Bolt
Courtesy of FORD MOTOR CO.
Fig 11: Locating Oil Pump Bolts
Courtesy of FORD MOTOR CO.
