Oil Pressure Switch: Removal

WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: JACKING AND LIFTING - OVERVIEW .
Fig 1: Locating Underbody Shield Bolts
Courtesy of FORD MOTOR CO.
Torque : 10 Nm

Fig 2: Locating Tube Bracket Bolts
Courtesy of FORD MOTOR CO.
Apply the substance from the specified tube.
Material : Thread Sealant with ATF / TA-24 (WSK-M2G350-A2)

Torque : 15 Nm

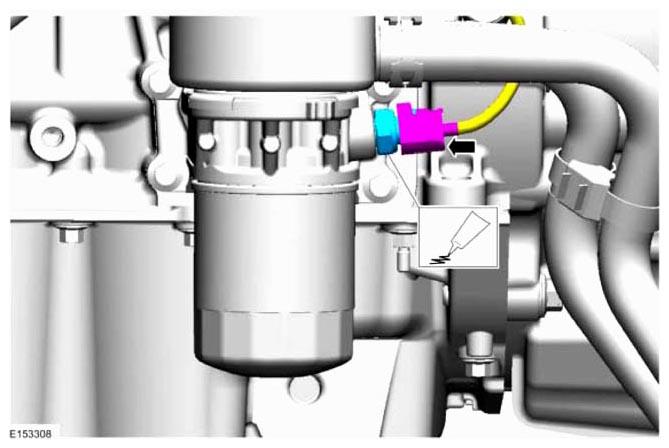

Fig 3: Applying Thread Sealant To EOP Switch Threads
Courtesy of FORD MOTOR CO.
