Removal and Installation: Camshaft: Removal

WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan can cause engine failure.

NOTE: Do not rotate the camshafts unless instructed to in this procedure. Rotating the camshafts or crankshaft with timing components loosened or removed can cause serious damage to the valves and pistons.

Refer to: JACKING AND LIFTING - OVERVIEW .
Refer to: Valve Clearance Check .
Refer to: Variable Valve Timing (VVT) Unit .
Remove the Special Tool(s) : 303-1565 (Alignment Tool, Camshaft)

Fig 1: Removing Camshaft Alignment Tool From Rear Of Both Of Camshaft Slots
Courtesy of FORD MOTOR CO.
Fig 2: Locating Bolts And Variable Camshaft Timing Solenoids
Courtesy of FORD MOTOR CO.
Fig 3: Locating Bolts And Front Camshaft Bearing Cap
Courtesy of FORD MOTOR CO.

NOTE: Failure to follow the camshaft loosening procedure can result in damage to the camshafts.

NOTE: Note the location and orientation of each camshaft bearing cap and the position of the camshaft lobes on the No. 1 cylinder for installation reference.

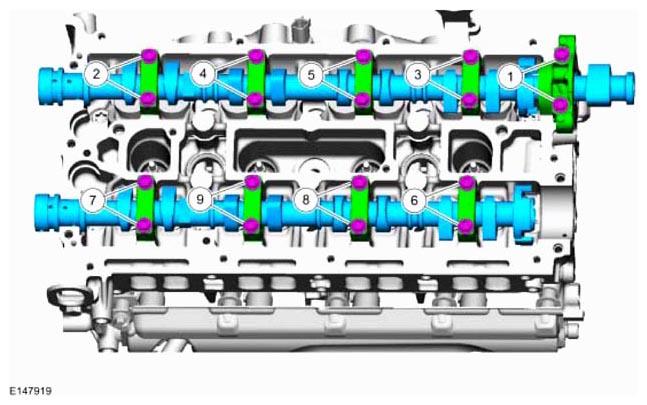

Fig 4: Identifying Camshaft Bearing Caps Bolts Loosening Sequence

Courtesy of FORD MOTOR CO.

Loosen the camshaft bearing caps in sequence 2 turns at a time until all tension is released from the camshaft bearing caps.
