Manifold Absolute Pressure and Temperature (MAPT) Sensor: Removal

WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
    WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in SERVICE INFORMATION General Information. Failure to follow this instruction may result in serious personal injury.
  1. Refer to: Health and Safety Precautions  ( HEALTH AND SAFETY PRECAUTIONS ).
  2. Torque  : 3 Nm

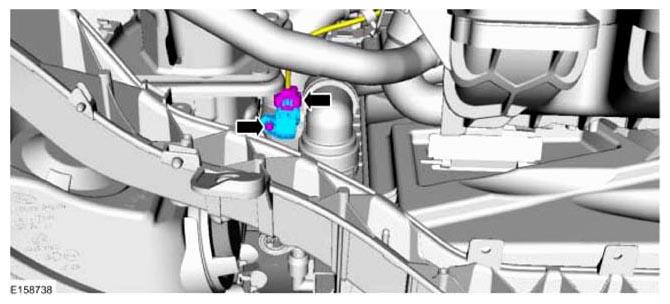

    Fig 1: Locating MAPT Sensor Harness Connector And Bolt
    G08064001Courtesy of FORD MOTOR CO.
