Crankshaft Position (CKP) Sensor: Installation

WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the crankshaft clockwise until the No. 1 piston is 45 degrees BTDC using the guide holes on the engine front cover and the crankshaft pulley.
    Fig 1: Turning Crankshaft Clockwise
    G08063962Courtesy of FORD MOTOR CO.
  2. Fig 2: Locating Cylinder Block Plug
    G08063963Courtesy of FORD MOTOR CO.
  3. Special Tool(s)  : 303-507 (Timing Peg, Crankshaft TDC)
    Fig 3: Identifying Special Tools 303-507 (Timing Peg, Crankshaft TDC)
    G08063964Courtesy of FORD MOTOR CO.
  4. NOTE: The Crankshaft TDC Timing Peg will contact the crankshaft and prevent it from turning past TDC. However, the crankshaft can still be rotated in the counterclockwise direction. The crankshaft must remain at the TDC during CKP sensor installation.
    NOTE: The engine front cover is removed from graphic for clarity.

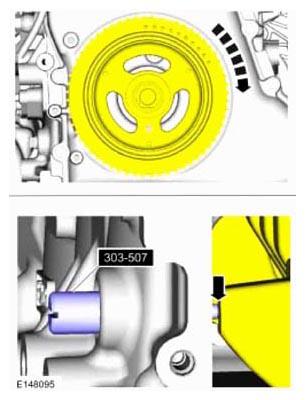

    Fig 4: Turning Crankshaft Clockwise
    G08063965Courtesy of FORD MOTOR CO.
  5. Special Tool(s)  : 303-507 (Timing Peg, Crankshaft TDC)
  6. NOTE: Do not tighten the CKP sensor bolts at this time.
    Fig 5: Locating CKP Sensor Bolts
    G08063966Courtesy of FORD MOTOR CO.
  7. Install the Special Tool(s)  : 303-1521 (Alignment Tool, Crankshaft Position Sensor)

    Torque  : 7 Nm

  8. Remove the Special Tool(s)  : 303-1521 (Alignment Tool, Crankshaft Position Sensor)
    Fig 6: Removing Crankshaft Position Sensor Using Special Tools
    G08063967Courtesy of FORD MOTOR CO.
  9. Remove the Special Tool(s)  : 303-507 (Timing Peg, Crankshaft TDC)
    Fig 7: Identifying Special Tools 303-507 (Timing Peg, Crankshaft TDC)
    G08063964Courtesy of FORD MOTOR CO.
  10. Torque  : 20 Nm
    Fig 8: Locating Cylinder Block Plug
    G08063963Courtesy of FORD MOTOR CO.
  11. Fig 9: Locating Engine Lower Cover Bolts
    G08056265Courtesy of FORD MOTOR CO.
  12. Fig 10: Locating Lower Strip Mounting Bolts
    G08056264Courtesy of FORD MOTOR CO.
  13. Install the RH inner fender splash shield. Refer to FRONT END BODY PANELS .
  14. After completing the repairs, use a scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.

    General Equipment  : Ford Diagnostic Equipment
