Camshaft Position (CMP) Sensor RH: Removal

WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in SERVICE INFORMATION General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions ( HEALTH AND SAFETY PRECAUTIONS ).
1. Torque : 10 Nm
2. Torque : 5 Nm

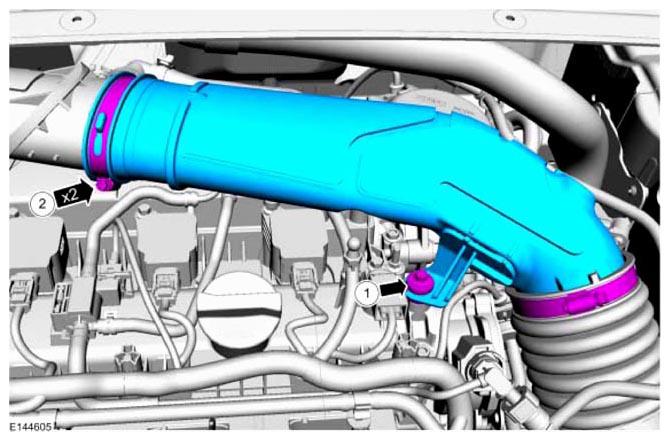

Fig 1: Locating Turbocharger Hose Clamps And Bolt
Courtesy of FORD MOTOR CO.
Torque : 7 Nm

Fig 2: Locating Camshaft Position (CMP) Sensor RH Harness Connector And Bolt
Courtesy of FORD MOTOR CO.
