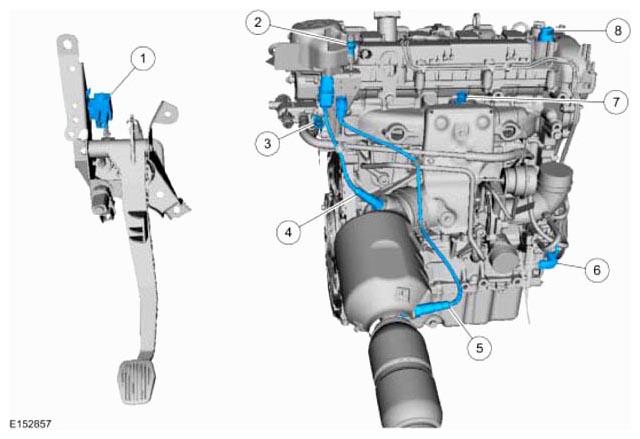

RH Engine
WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Description |
| 1 |
CPP switch |
| 2 |
Exhaust CMP sensor |
| 3 |
ECT |
| 4 |
HO2S |
| 5 |
Catalyst monitor sensor |
| 6 |
CKP sensor |
| 7 |
CHT sensor |
| 8 |
Exhaust VCT oil control solenoid |
