LH Engine
WARNING: This page is about a different car, the 2013 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

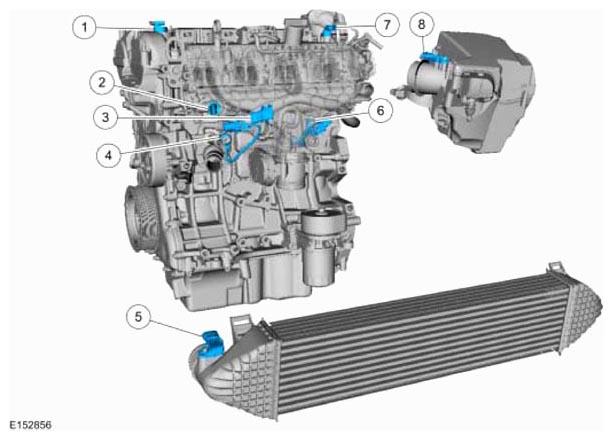

| Item |
Description |
| 1 |
Intake VCT oil control solenoid |
| 2 |
FRP sensor |
| 3 |
MAP sensor |
| 4 |
Front KS |
| 5 |
MAPT sensor |
| 6 |
Rear KS |
| 7 |
Intake CMP sensor |
| 8 |
MAF sensor |
