Brake Pedal and Bracket: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: Accelerator Pedal  ( ACCELERATOR PEDAL ).
  2. Refer to: Stoplamp Switch  ( STOPLAMP SWITCH ).
  3. Torque  : 25 Nm

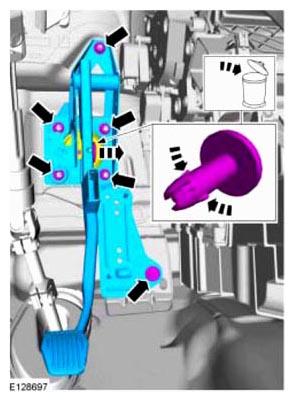

    Fig 1: Locating Brake Pedal And Bracket Bolts
    G08056157Courtesy of FORD MOTOR CO.
